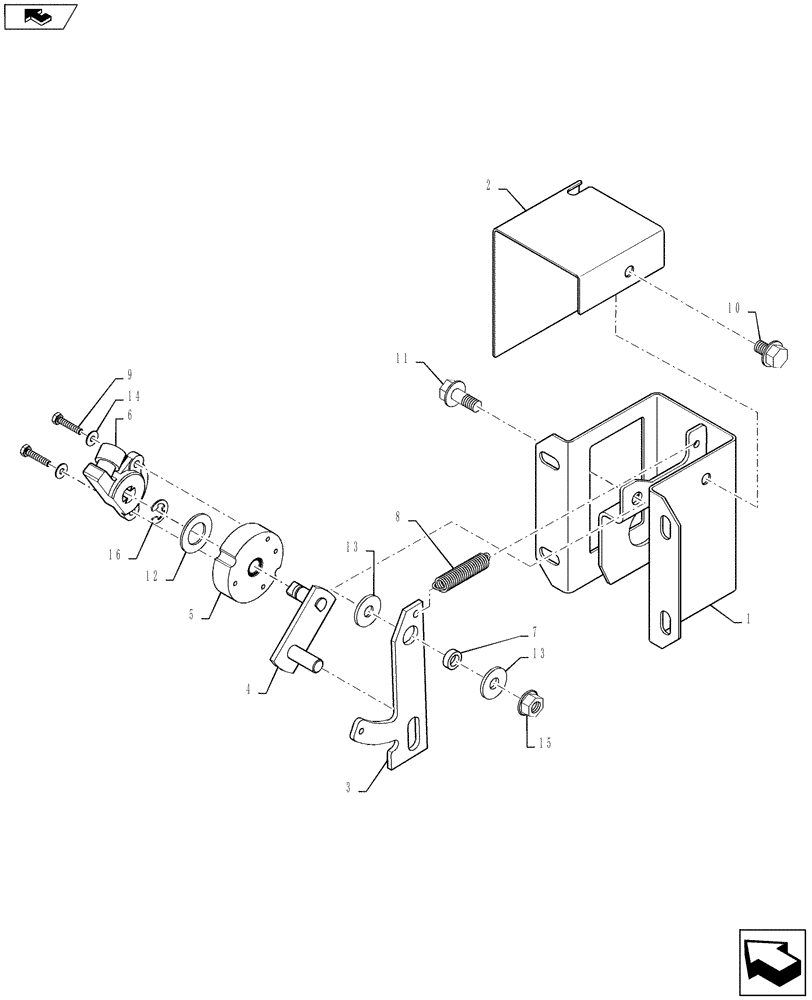

Запчасти Case IH RB455A (55.628.02) - SENSOR - ASSY, NET WRAP (55) - ELECTRICAL SYSTEMS

1

84231880

COVER

1шт.

2

84231881

PROTECTION PLATE

1шт.

3

86637391

ARM

1шт.

4

86619565

SUPPORT

1шт.

5

87362420

MOUNT

1шт.

6

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

7

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

1шт.

8

217465

SPRING

1шт.

9

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

10

86512520

BOLT,Hvy Hex, M8 x 12mm, Cl 8.8, Full Thd

1шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

12

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.

13

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

14

9672521

LOCK WASHER,Ext Tooth, #10

2шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

16

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.
