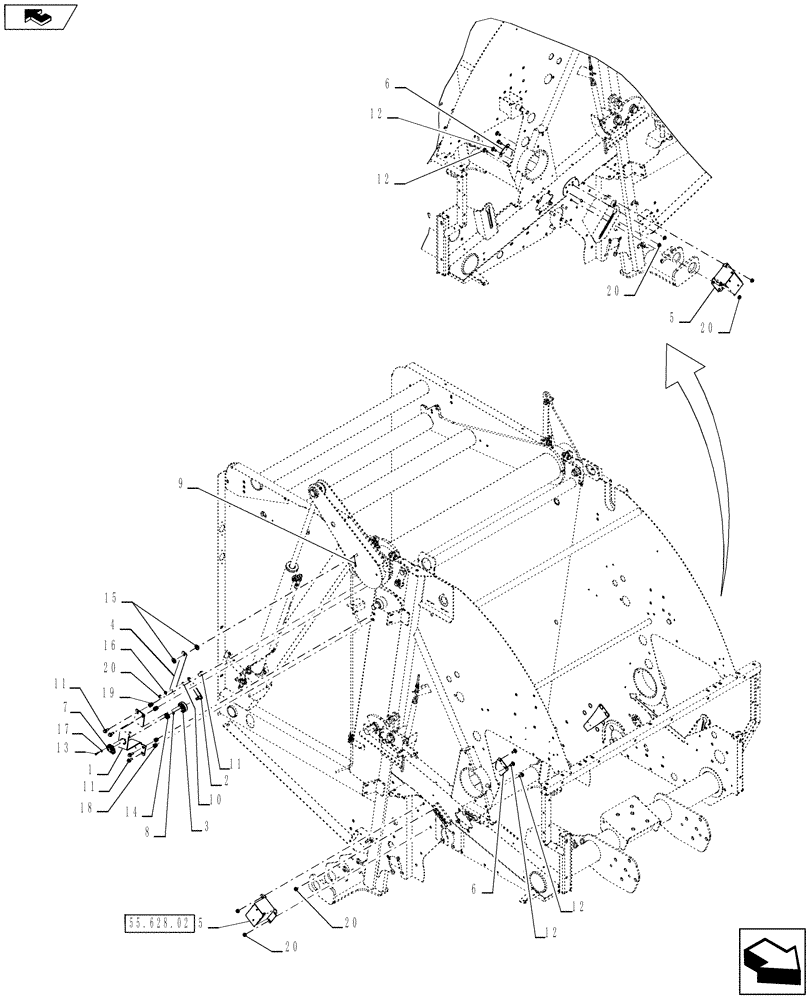

Запчасти Case IH RB455A (55.628.01) - NET WRAP SENSOR (55) - ELECTRICAL SYSTEMS

1

84275950

MOUNT

1шт.

2

84319036

ARM

1шт.

3

84308004

HUB

1шт.

4

84294382

STRAP

1шт.

5

0C

ORDER COMPONENTS

Sensor

2шт.

84232135

1шт.

6

86637389

SPRING

2шт.

7

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

8

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

9

80756

COTTER PIN,1/8" x 3/4"

1шт.

10

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

1шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

12

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

12шт.

13

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

14

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.

15

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

16

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

17

9672521

LOCK WASHER,Ext Tooth, #10

2шт.

18

86610200

THREADED INSERT,M8 x 1.25

2шт.

19

86610201

INSERT,M8

2шт.

20

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

13шт.
