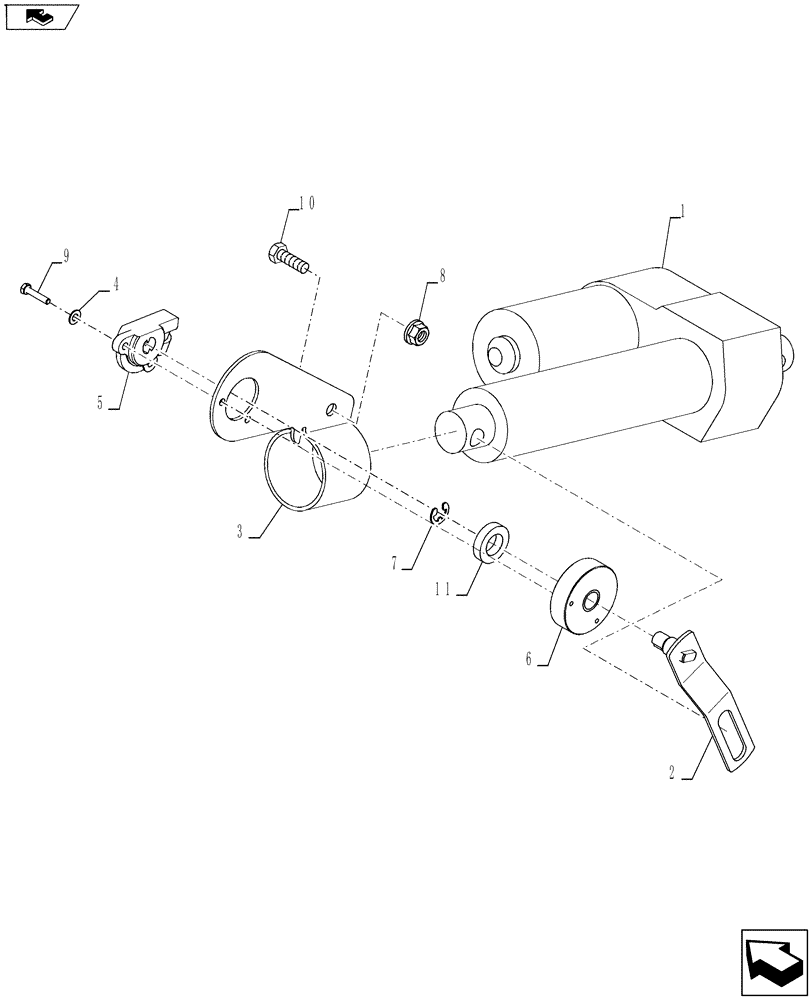

Запчасти Case IH RB455A (55.435.02) - NET ACTUATOR (55) - ELECTRICAL SYSTEMS

1

86634125

ELECTRIC MOTOR

Net Acttuator

1шт.

1

86634125R

REMAN-ELECTRIC ACTUATOR

Reman for New PN 86634125

1шт.

1

86634125C

CORE-ELECTRIC ACTUATOR

Return Number

1шт.

2

84318531

ARM

Net & Twine Potentiometer

1шт.

3

84368388

BRACKET, SUPPORTING

1шт.

4

9672521

LOCK WASHER,Ext Tooth, #10

2шт.

5

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

6

84308004

HUB

1шт.

7

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

9

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

11

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.
