Запчасти Case IH RB455A (55.404.01) - LIGHTING (55) - ELECTRICAL SYSTEMS

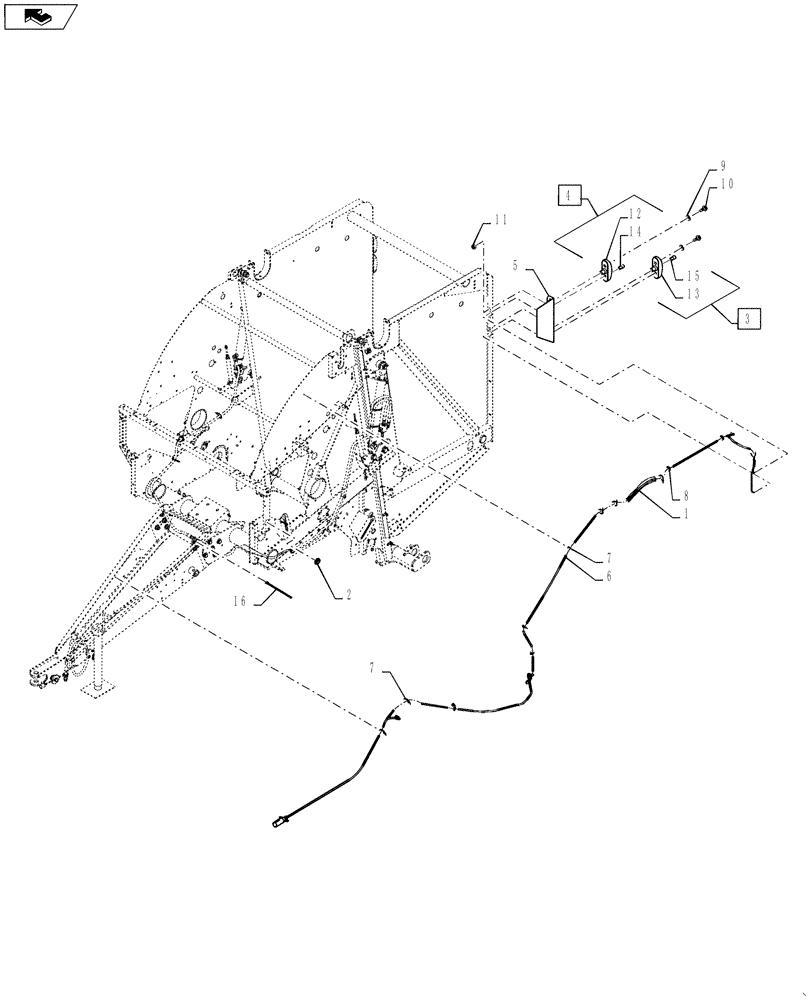

Схема запчастей Case IH RB455A - (55.404.01) - LIGHTING (55) - ELECTRICAL SYSTEMS
7
15
7
16
14
3
10
5
13
12
home
11
6
8
1
2
4
9

Артикул

Название

Примечание

Количество

1

PL

PROCURE LOCALLY

Convoluted 3/8" ID, Black Tubing

1шт.

93867

1шт.

2

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

1шт.

3

D121152

LAMP,12V

Hazard & Turn Signal Lamp, Includes: Ref. 13 & 15

2шт.

4

D135384

LAMP,12V

Stop & Tail Lamp, Includes: Ref. 12 & 14

2шт.

5

84133445

BRACKET, SUPPORTING

Light

2шт.

6

84225664

WIRE HARNESS

Lighting

1шт.

7

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

9шт.

8

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

7шт.

9

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

8шт.

10

86551278

SELF-TAP SCREW,HWH, #10 - 16 x 1/2"

8шт.

11

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

12

NSS

NOT SOLD SEPARAT

Lens, Amber

2шт.

13

D121152

LAMP,12V

Lens, Red

2шт.

14

PL

PROCURE LOCALLY

Bulb, #1157 12V

2шт.

15

PL

PROCURE LOCALLY

Bulb, #1156 12V

2шт.

16

87034173

CABLE TIE,774.7mm L

CABLE STRAP

2шт.

Выбрано товаров: 17
