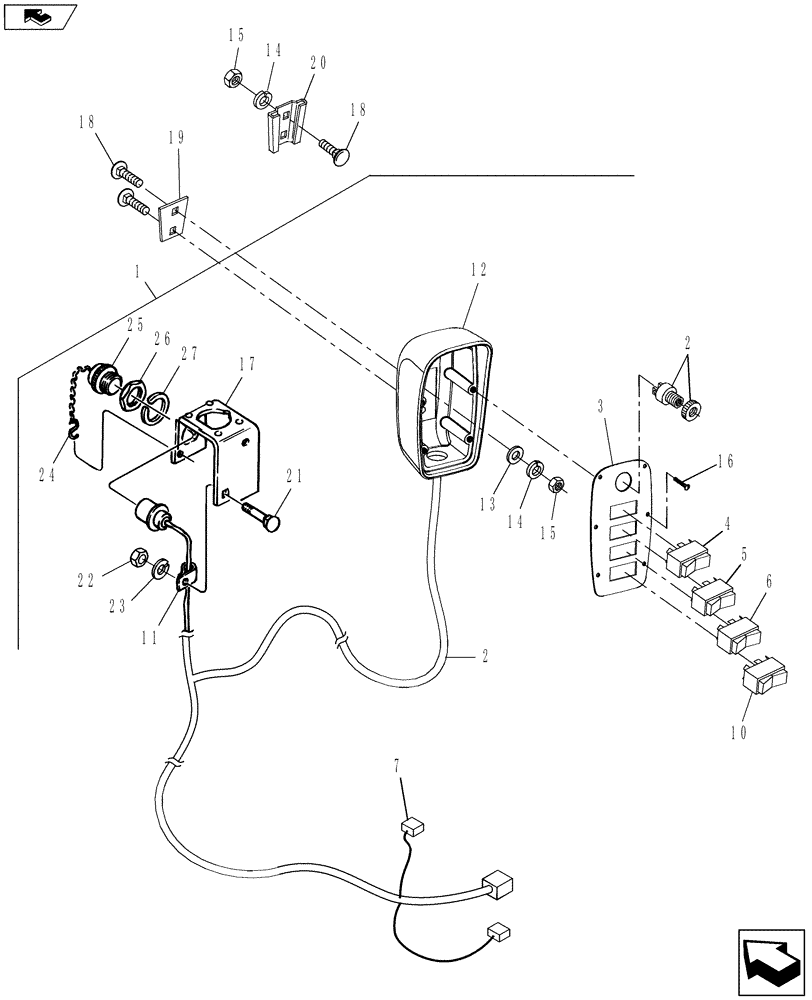

Запчасти Case IH RB455A (55.100.08) - NET TWINE CONTROL BOX & WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

84258585

WIRE HARNESS

Tractor, Standard Net / Twine

1шт.

2

84261068

WIRE HARNESS

Tractor, Deluxe, Net / Twine

1шт.

3

84260164

CONTROL PANEL

1шт.

4

84240266

SWITCH

1шт.

5

84240267

SWITCH

1шт.

6

84240268

SWITCH

1шт.

7

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

8

9623775

FUSE,5 Amp

1шт.

Not Illustrated

1шт.

9

PL

PROCURE LOCALLY

30 Amp

1шт.

Not Illustrated

1шт.

10

84240379

SWITCH

Net / Twine

1шт.

11

87612756

CLAMP,25.4mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

12

86620088

COVER

1шт.

13

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

14

80681

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

88363

SCREW,Fillister Hd, #6 - 32 x 1 1/4"

6шт.

17

787868

BRACKET

1шт.

18

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

19

84261470

BRACKET MONITOR EQUI

Male

1шт.

20

847590

BRACKET

Female

1шт.

21

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

22

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

24

617887

HOOK

"S"

1шт.

25

767456

PLUG

Dust

1шт.

26

87271930

NUT

1шт.

27

NSS

NOT SOLD SEPARAT

Lock Nut

1шт.
