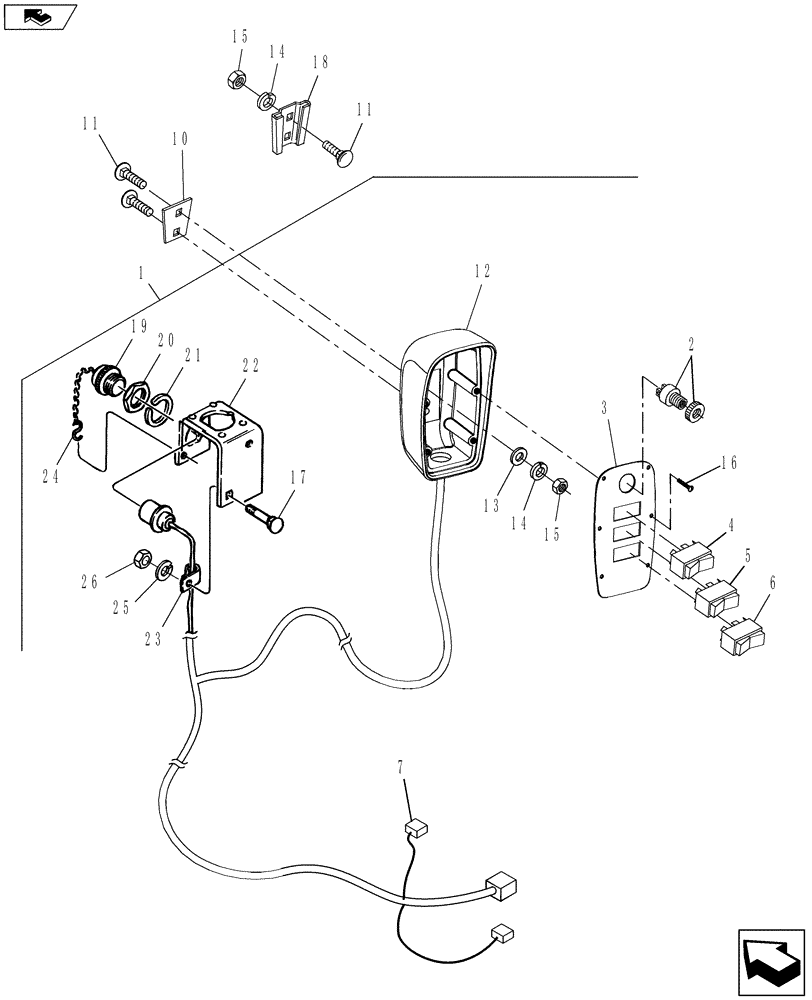

Запчасти Case IH RB455A (55.100.06) - TWINE WRAP CONTROL BOX & WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

84233724

WIRE HARNESS

Tractor, Standard Twine

1шт.

2

86507086

ALARM

1шт.

3

84227705

FRONT PLATE

1шт.

4

84240266

SWITCH

1шт.

5

84240267

SWITCH

1шт.

6

84240268

SWITCH

1шт.

7

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

8

9623775

FUSE,5 Amp

1шт.

Not Illustrated

1шт.

9

9846342

FUSE,25A

1шт.

Not Illustrated

1шт.

10

84261470

BRACKET MONITOR EQUI

1шт.

11

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

12

86620088

COVER

1шт.

13

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

14

80681

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

88363

SCREW,Fillister Hd, #6 - 32 x 1 1/4"

6шт.

17

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

18

847590

BRACKET

Female

1шт.

19

767456

PLUG

Dust

1шт.

20

87271930

NUT

1шт.

21

NSS

NOT SOLD SEPARAT

Lock Nut

1шт.

22

787868

BRACKET

1шт.

23

87612756

CLAMP,25.4mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

24

617887

HOOK

"S"

1шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

26

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.
