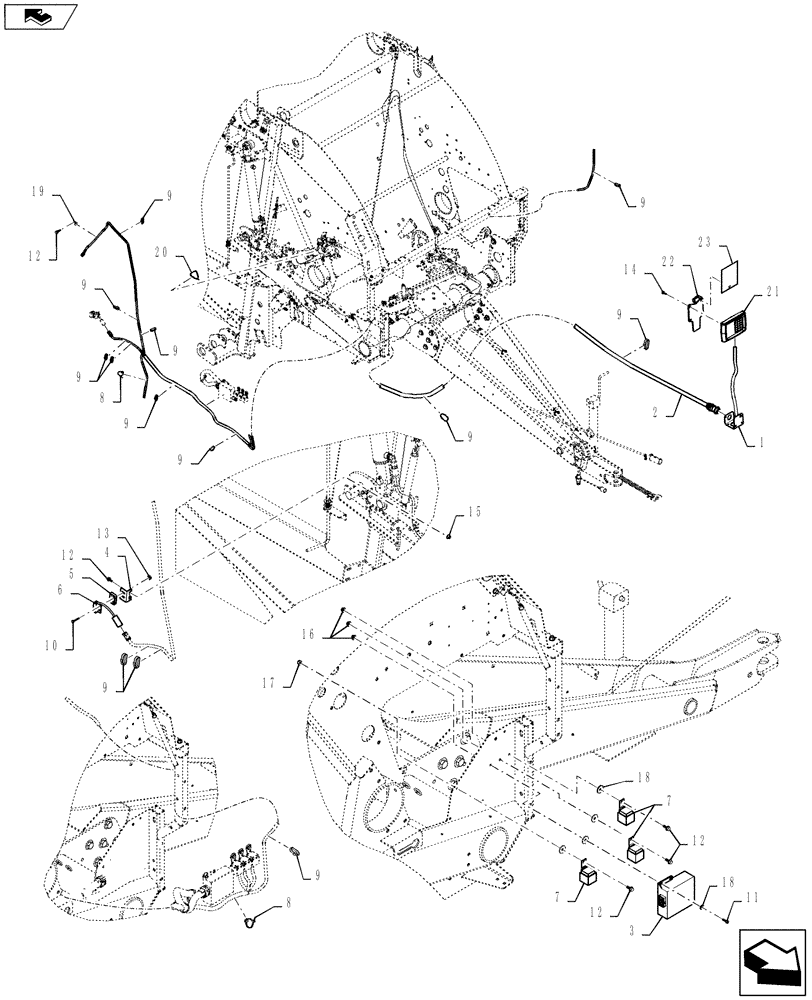

Запчасти Case IH RB455A (55.100.03) - ELECTRONICS, DELUXE NET-TWINE (55) - ELECTRICAL SYSTEMS

1

84261068

WIRE HARNESS

Tractor, Deluxe, Net / Twine

1шт.

2

84261069

WIRE HARNESS

Baler, Deluxe, Net / Twine

1шт.

3

84306560

ECU

4шт.

Use Electronic Service Tool to Load Software

1шт.

4

86611813

ANGLE

1шт.

5

86624468

SPACER,1.65" L x 5/16” Thk

1шт.

6

86594422

SENSOR

1шт.

7

82017871

RELAY,12V, 20A

4шт.

8

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

3шт.

9

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

23шт.

10

86900322

SCREW,Phillips Drive, Truss HD, #10 - 24 x 1-1/4", SST

2шт.

11

14304221

HEX SOC SCREW,M5 x 16mm, Cl 8.8, Full Thd

2шт.

12

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

13

86900323

NUT,#10 - 24

2шт.

14

87742364

SCREW,Pan Torx, M6 x 16mm, Cl 8.8

1шт.

15

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

16

86507065

NUT,M5 x .8, Cl 10

2шт.

17

319725A1

RUBBER WASHER

6шт.

18

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

19

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

20

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

21

84185963

CONSOLE

1шт.

22

84385021

MOUNTING PLATE

1шт.
