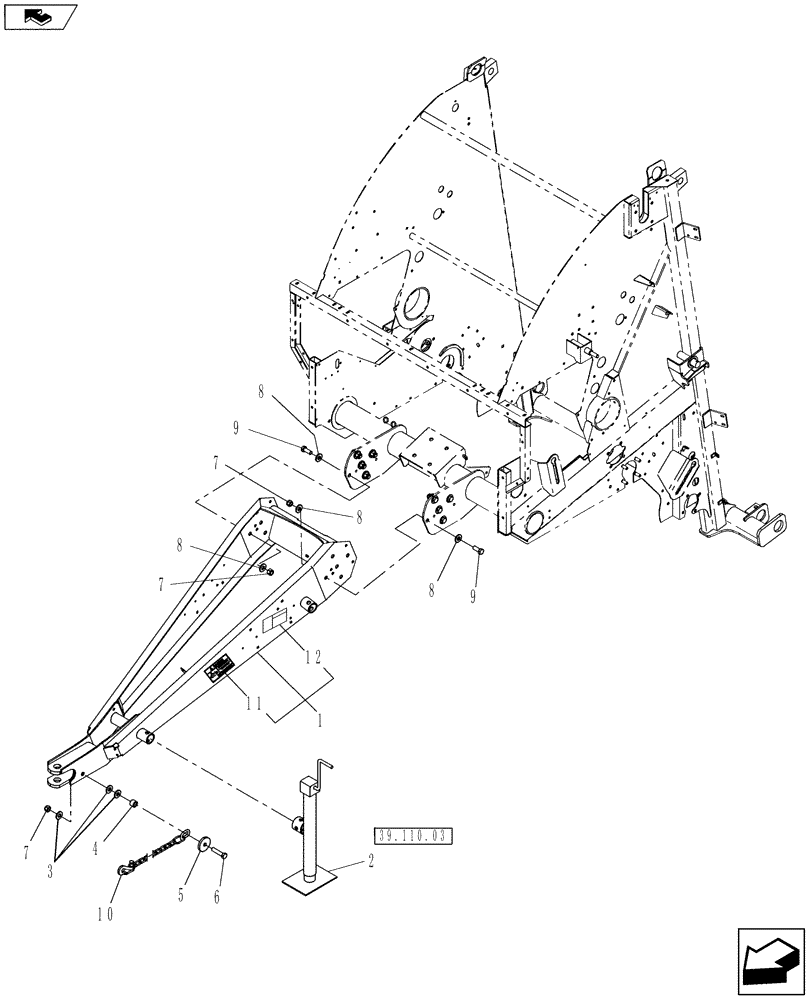

Запчасти Case IH RB455A (39.110.01) - HITCH (39) - FRAMES AND BALLASTING

1

84289516

HITCH

Hitch, Includes: Ref. 11 & 12

1шт.

2

86617866

JACK

1шт.

3

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

3шт.

4

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

5

636422

WASHER,16.66mm ID x 69.85mm OD

1шт.

6

120092

BOLT,M16 x 70mm, Cl 8.8

1шт.

7

86000441

NUT,M16 x 2.0, Cl 8

11шт.

8

64053

WASHER,16.9mm ID x 38.55mm OD x 4mm Thk

20шт.

9

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

10шт.

10

797900

CHAIN

1шт.

11

9826789

DANGER DECAL,180mm x 90mm H

1шт.

12

87041061

WARNING DECAL

1шт.
