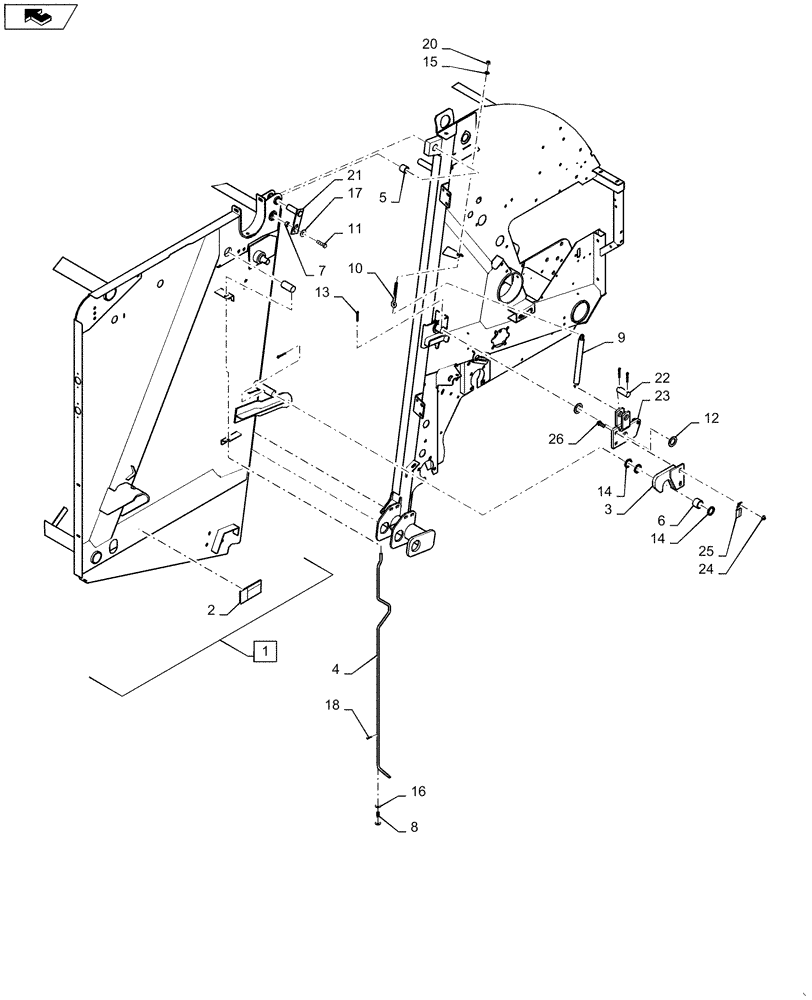

Запчасти Case IH RB455A (39.100.02) - TAILGATE, RH (39) - FRAMES AND BALLASTING

1

84289489

TAILGATE

Includes: Ref. 2

1шт.

2

86631519

DANGER DECAL

1шт.

3

47853346

HOOK

RH

1шт.

4

86554799

ROD,1232.7mm L

1шт.

5

26306

DRIVE BUSHING,25.47mm ID x 31.82mm OD x 31.8mm L

1шт.

6

9600196

SPACER,32.23mm ID x 39.7mm OD x 29.98mm L

1шт.

7

86977433

SPACER,13.11mm ID x 19.05mm OD x 12.7mm Thk

1шт.

8

34019

SPRING,Compression, 9/16" OD x 2-5/16" L

1шт.

9

605846

SPRING,Extension, 25.4mm OD x 243.8mm L

1шт.

10

27953

EYEBOLT

1шт.

11

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

1шт.

12

64972

WASHER,32.54mm ID x 50.8mm OD x 3.43mm Thk

2шт.

13

87399

COTTER PIN,1/2 x 3 Bolt

4шт.

14

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

3шт.

15

87362

WASHER,5/16" SAE

1шт.

16

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

1шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

18

80756

COTTER PIN,1/8" x 3/4"

1шт.

19

86554798

PIN,31.7mm OD x 66mm L

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

1шт.

21

47919326

PIN

1шт.

22

166065

PIN,25.4mm OD x 66.5mm L

1шт.

23

84485250

LATCH

RH, Adjustable

1шт.

24

9824278

NUT

2шт.

25

84387467

BRACKET

Sensor

4шт.

26

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.
