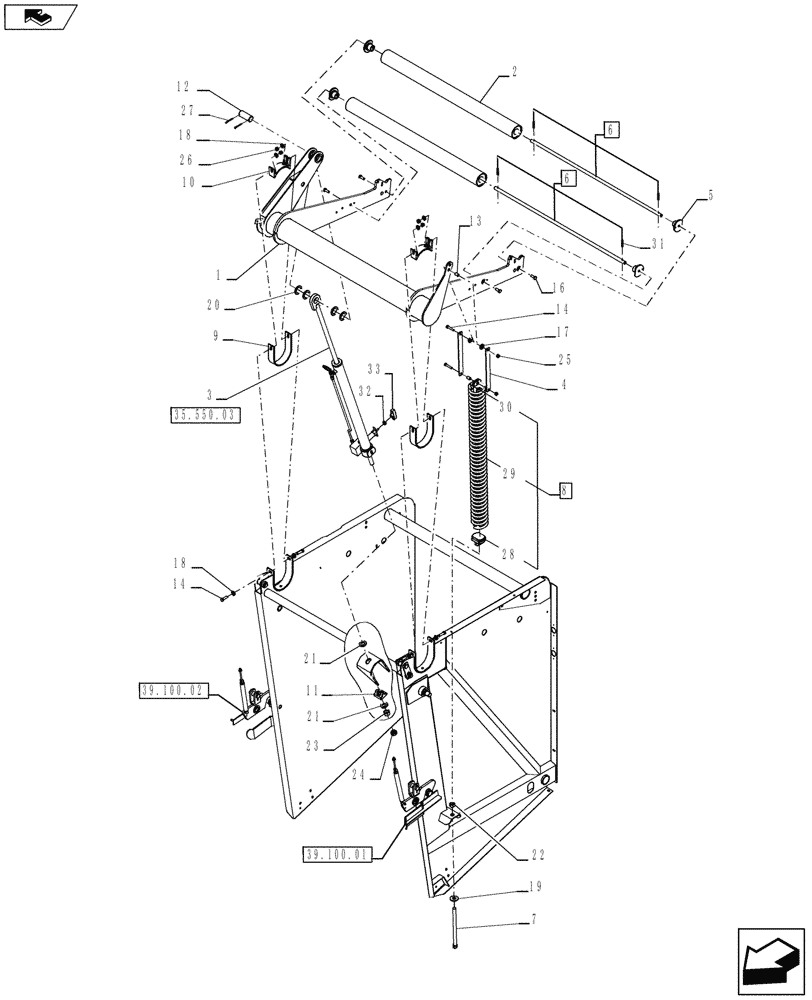

Запчасти Case IH RB455A (35.550.06) - BELT TENSION (35) - HYDRAULIC SYSTEMS

1

84241826

ARM

Take-Up

1шт.

2

9842288

ROLLER,88.9mm OD x 1142mm L

Front Serpentine

2шт.

3

0C

ORDER COMPONENTS

Tension Hydraulic Cylinder

1шт.

4

9829481

CONNECTING LINK

2шт.

5

87023400

SUPPORT

4шт.

6

9823372

SHAFT,1135mm L

Includes: (2) Ref. 31

2шт.

7

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

1шт.

8

87654704

SPRING

Includes: Ref. 28, 29 & 30

1шт.

9

9617265

BAND

2шт.

10

9617266

BEARING CAP,145.6 mm OD

2шт.

11

87654703

PIVOT

Spring

1шт.

12

86637228

PIN,38.1mm OD x 91.5mm L

1шт.

13

768624

SPACER

2шт.

14

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

15

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

16

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

4шт.

17

52828

WASHER

2шт.

18

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

19

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

1шт.

20

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

4шт.

21

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

22

280954

NUT,3/4"-10, G5

1шт.

23

9849647

NUT,7/8"-9, G5

1шт.

24

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

25

86619802

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

26

100038

NUT,M12 x 1.75, Cl 8

4шт.

27

87400

COTTER PIN,3/16" x 2"

2шт.

28

143672

SPRING NUT

Spring

1шт.

29

621339

SPRING

1шт.

30

143672

SPRING NUT

Spring

1шт.

31

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

32

87308

JAM NUT,Jam, 3/8"-24, G2

1шт.

33

84365996

KNOB

1шт.
