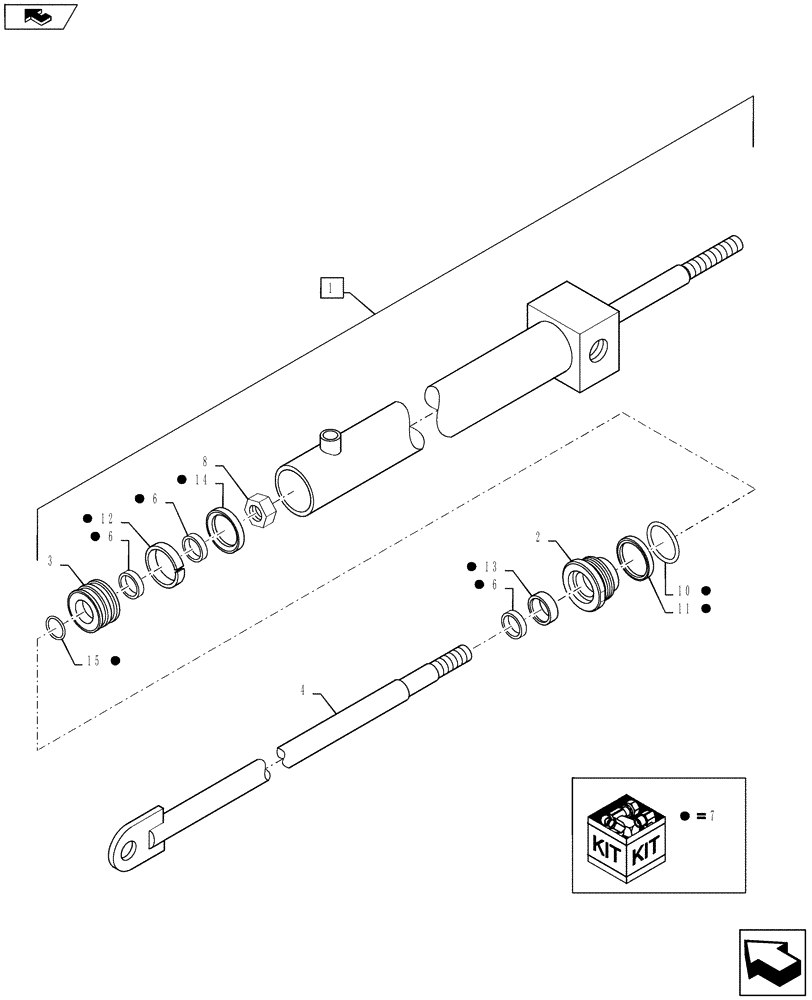

Запчасти Case IH RB455A (35.550.04) - BALE TENSION HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

84246781

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 686mm Stroke

Bale Tension

2шт.

Manufacturer's Production Date Stamp - (ex. 03 2010 84246780 = M / Year / Part Number)

1шт.

2

84314054

CYLINDER HEAD

1шт.

3

84313737

PISTON

1шт.

4

84313736

PISTON ROD/GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

Tube

1шт.

6

NSS

NOT SOLD SEPARAT

Backup Washer

3шт.

7

84313742

SEAL KIT

1шт.

Components are N.S.S.

1шт.

8

87629

NUT,5/8"-11, GB

1шт.

9

280864

BOLT,Hex, 7/8" - 9 x 3 3/4", Gr 5

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Wiper

1шт.

14

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

1шт.
