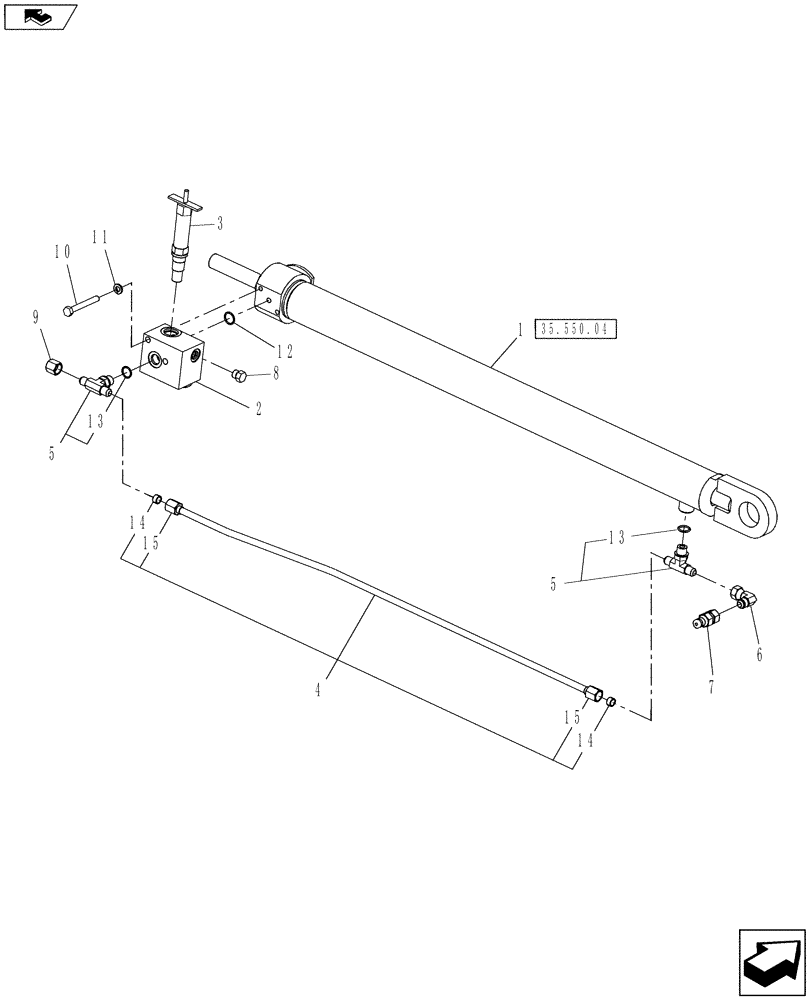

Запчасти Case IH RB455A (35.550.03) - HYDRAULIC BALE TENSION (35) - HYDRAULIC SYSTEMS

1

84246781

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 686mm Stroke

Bale Tension

1шт.

2

87028083

EXCHANGE VALVE PLATE

Bale Tension

1шт.

3

86520938

VALVE PRESSURE RELIE

1шт.

4

86605282

TUBE,0.375" OD x 28.83", 4.18" L

1шт.

5

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Includes: Ref. 13

2шт.

6

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

7

101792A1

COUPLING

1шт.

8

76349

PLUG,9/16" - 18 ORB

Includes: Ref. 13

1шт.

9

574342

CAP,9/16" - 18 JIC

1шт.

10

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

11

80681

LOCK WASHER,5/16"

2шт.

12

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

14

235670

SLEEVE,37 Degree, 3/8" Tube

2шт.

15

136658

TUBE NUT,0.72" Length

2шт.
