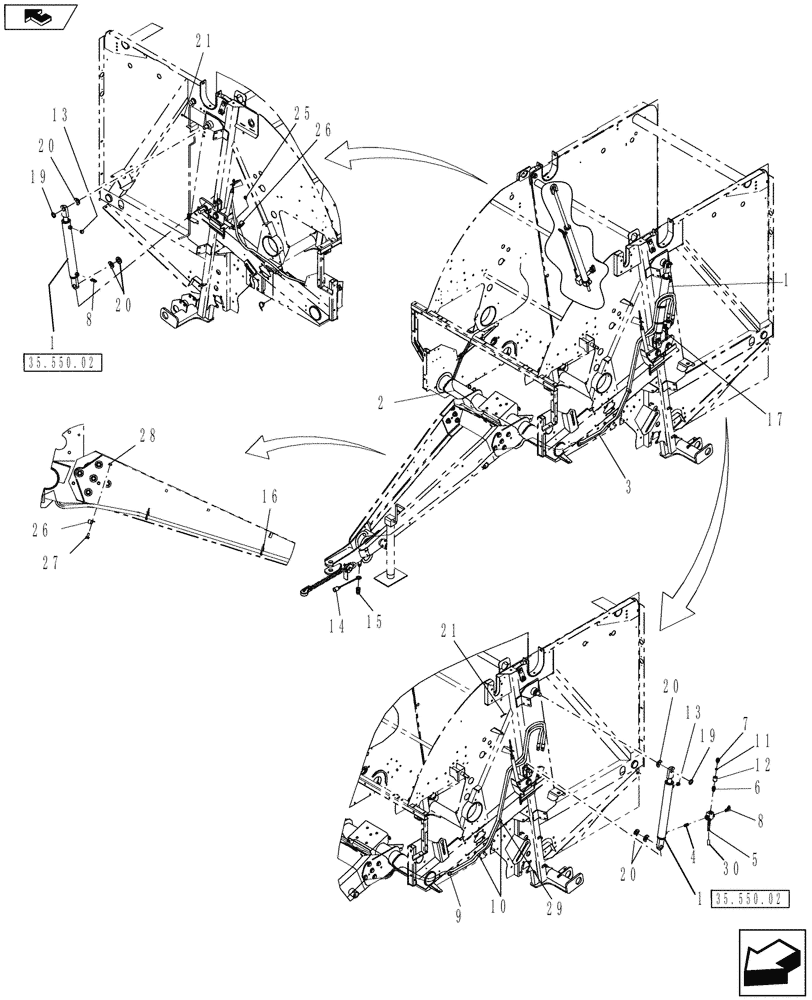

Запчасти Case IH RB455A (35.550.01) - TAILGATE LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

87517395

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 373.38mm Stroke

Tailgate Lift

2шт.

2

84307406

HYDRAULIC HOSE

RH, 165"

1шт.

3

84534710

HYDRAULIC HOSE

LH

1шт.

4

9846669

HYD CONNECTOR,9/16" - 18 Male x 9/16" - 18 Male

Includes: Ref. 22

1шт.

5

84606149

VALVE WITH LEVER

Shutoff

1шт.

6

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

1шт.

7

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Includes: Ref. 23

1шт.

8

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Includes: Ref. 22

2шт.

9

593508

GROMMET

1шт.

10

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

11

87584428

ORIFICE

1шт.

12

86635143

COUPLING,3/4" - 16, 1-9/64" L

1шт.

13

87564420

BREATHER

2шт.

14

86621124

DUST CAP

1шт.

15

9801618

QUICK MALE COUPLING,1/2" - 14

1шт.

16

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

17

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

18

87034173

CABLE TIE,774.7mm L

CABLE STRAP

3шт.

19

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

2шт.

20

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

6шт.

21

87399

COTTER PIN,1/2 x 3 Bolt

2шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Not Illustrated

1шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Not Illustrated

1шт.

25

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

2шт.

26

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

27

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

28

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

29

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

1шт.

30

47576842

HANDLE GRIP

1шт.
