(31.201.01[02]) - POWER TAKE OFF, 540 RPM, SHEAR BOLT, NORTH AMERICA

Запчасти Case IH RB455A (31.201.01[02]) - POWER TAKE OFF, 540 RPM, SHEAR BOLT, NORTH AMERICA (31) - IMPLEMENT POWER TAKE OFF

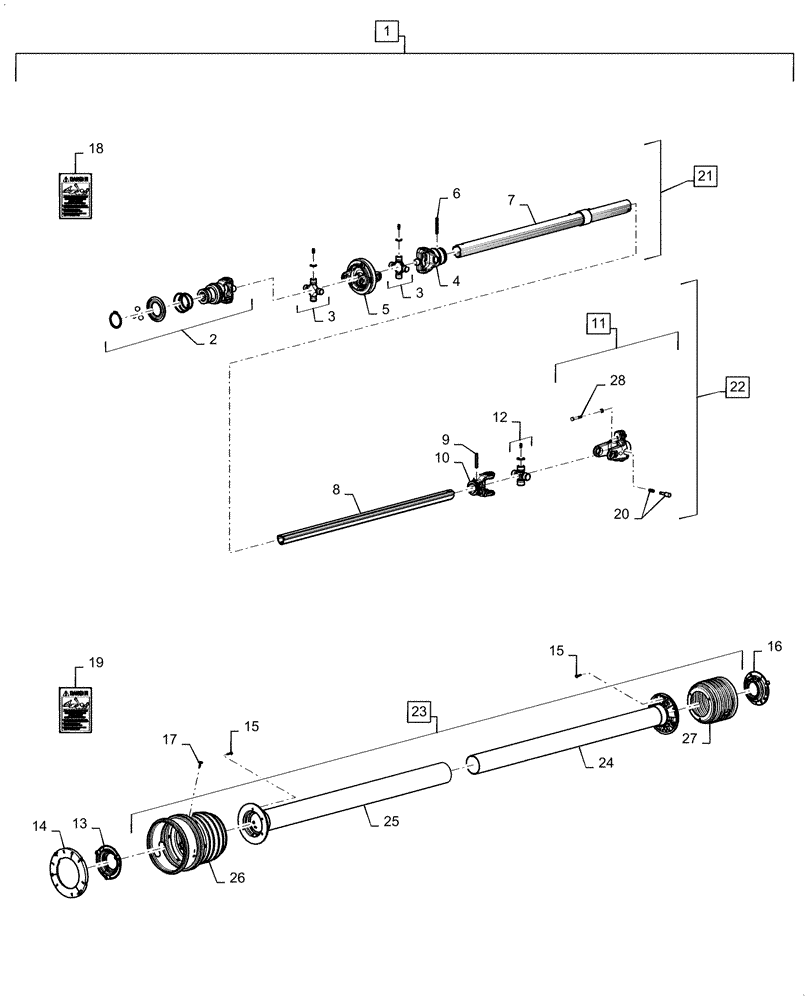

Схема запчастей Case IH RB455A - (31.201.01[02]) - POWER TAKE OFF, 540 RPM, SHEAR BOLT, NORTH AMERICA (31) - IMPLEMENT POWER TAKE OFF
15
19
3
17
28
23
22
8
5
25
20
18
13
9
10
21
12
14
4
7
26
24
2
3
16
27
1
6
11
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47841215

PTO

540 RPM, Shearbolt, 1400nM, Incl 2 - 23

1шт.

2

87518490

YOKE

1шт.

3

87517787

U-JOINT SPIDER

Shearbolt

1шт.

4

87520072

YOKE

1шт.

5

87517785

BODY

1шт.

6

87520073

ROLL PIN

1шт.

7

47841229

PTO SHAFT,1170mm L

Front

1шт.

8

47841232

PTO SHAFT,1175mm L

Rear

1шт.

9

86625846

PIN

1шт.

10

274240

YOKE

1шт.

11

87520105

HUB ASSY.

Incl 20, 28

1шт.

12

87520078

SPIDER ,U-JOINT

1шт.

13

84383919

SHIELD

Front

1шт.

14

87517775

SHIELD

Front

1шт.

15

NSS

NOT SOLD SEPARAT

Self-Tapping Screw

6шт.

16

84383920

SHIELD

Rear

1шт.

17

NSS

NOT SOLD SEPARAT

Self-Tapping Screw

5шт.

18

849471

DANGER DECAL

1шт.

19

849472

DANGER DECAL

1шт.

20

782083

LOCK PIN

Incl with 11

1шт.

21

47841309

PTO SHAFT

Front, Incl 2 - 7

1шт.

22

47841319

PTO SHAFT

Rear, Incl 8 - 12

1шт.

23

47841325

SHIELD

Complete, Incl 23 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

PTO Shield, Rear

1шт.

25

NSS

NOT SOLD SEPARAT

PTO Shield, Front

1шт.

26

NSS

NOT SOLD SEPARAT

Shield, Front

1шт.

27

NSS

NOT SOLD SEPARAT

Shield, Rear

1шт.

28

PL

PROCURE LOCALLY

Shearbolt, Incl with 11

1шт.
