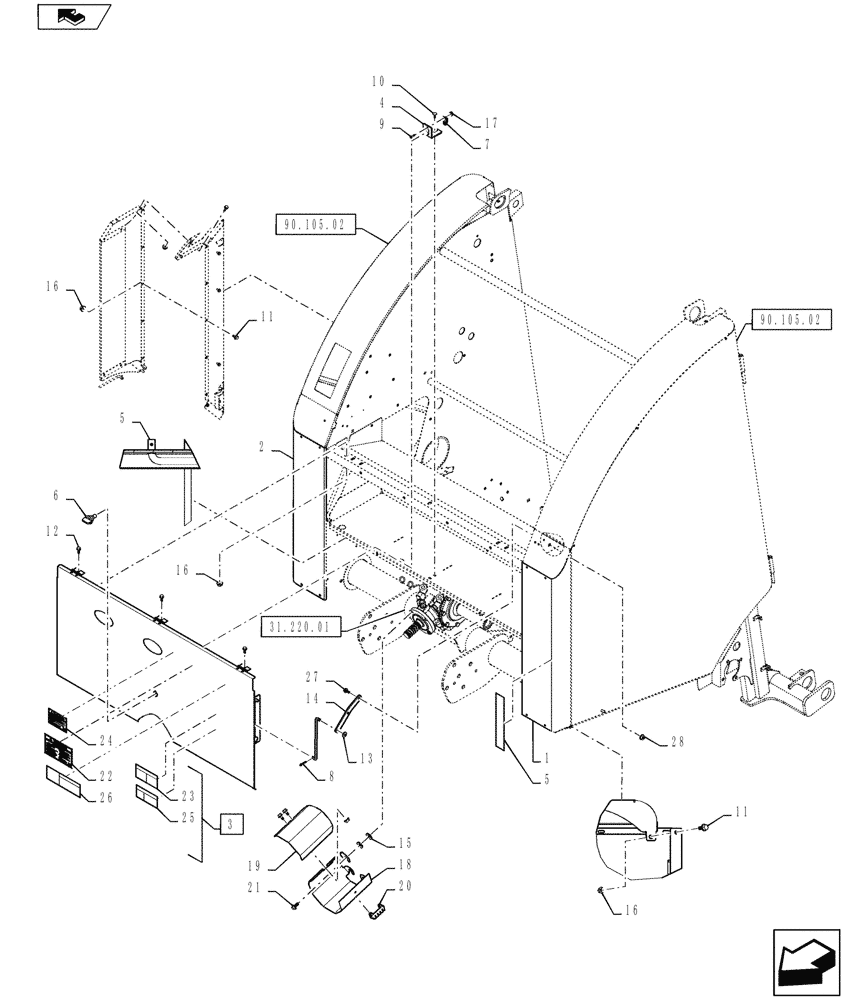

Запчасти Case IH RB455A (90.105.07) - TWINE SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84289528

FILLER

LH, Includes: Ref. 27

1шт.

2

84133395

FILLER

RH

1шт.

3

84289501

DOOR

Twine, Includes: Ref. 22 - 26

1шт.

4

84133418

ANGLE

1шт.

5

86547782

REFLECTOR,YELLOW

Yellow Reteoreflective

1шт.

6

9705390

LATCH

1/4 Turn

1шт.

7

9840986

CLIP

1шт.

8

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

9

86511919

SCREW,Pan, #10 - 24 x 3/8"

2шт.

10

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

11

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

18шт.

12

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

13

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

14

84361243

BRACKET, PIVOT

PIVOT BRACKET

1шт.

15

87613187

WASHER,0.53" ID x 0.75" OD x 0.12" Thk

6шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

23шт.

17

87304

NUT,#10-24

2шт.

18

84133454

SHIELD

1шт.

19

84289484

INSPECTION DOOR

Includes: Ref. 25

1шт.

20

52367

HOLDER

Shear Bolt

1шт.

21

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

3шт.

22

86622073

WARNING DECAL

1шт.

23

87014378

WARNING DECAL

Electric Risk

1шт.

24

87041060

WARNING DECAL

1шт.

25

86632699

WARNING DECAL

Moving Parts

2шт.

26

84337031

DANGER DECAL

1шт.

27

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

1шт.

28

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.
