Запчасти Case IH RB455A (90.105.01) - SIDE DOORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

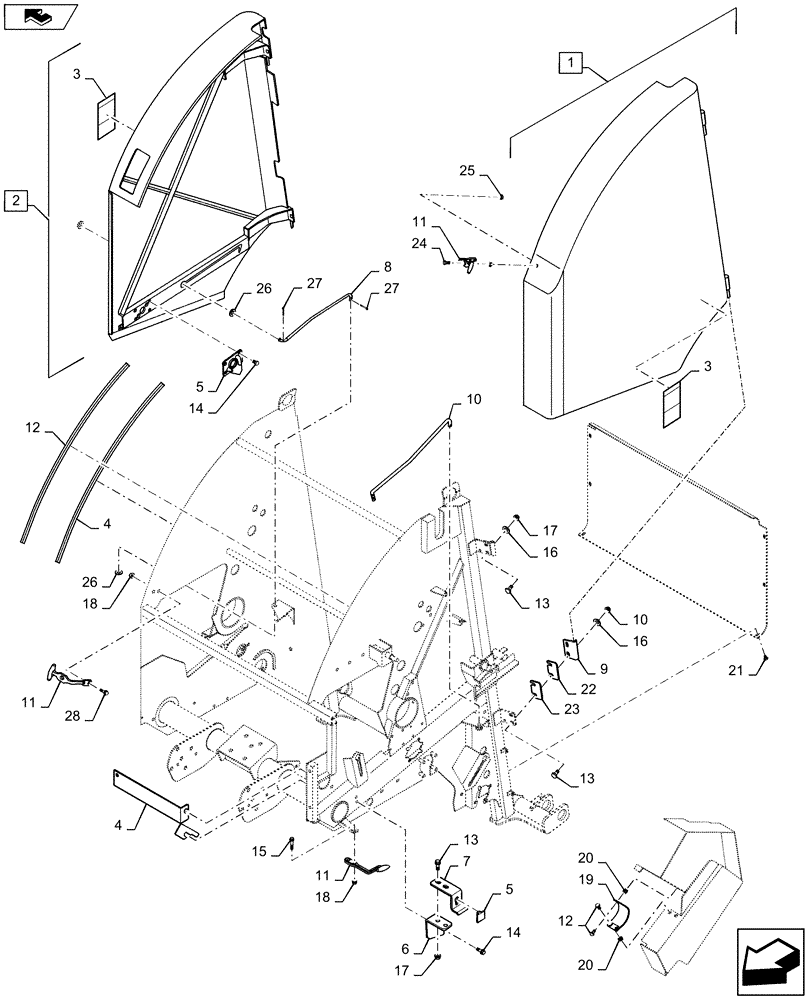

Схема запчастей Case IH RB455A - (90.105.01) - SIDE DOORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
10
8
3
24
11
18
27
21
14
19
18
23
13
26
17
20
28
17
11
13
1
4
3
5
9
25
11
12
20
26
22
27
15
14
10
home
7
16
13
16
6
2
12

Артикул

Название

Примечание

Количество

1

84289506

DOOR

LH, Includes: Ref. 3

1шт.

2

84289511

DOOR

RH, Includes: Ref. 3

1шт.

3

86631518

DANGER DECAL

2шт.

4

84133194

PROTECTION PLATE

1шт.

5

9617869

BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk

2шт.

6

84133559

STOP

2шт.

7

84133559

STOP

2шт.

8

84133508

ROD

RH

1шт.

9

84133414

ROD

4шт.

10

84133507

ROD

LH

1шт.

11

86000448

LATCH

4шт.

12

84299028

SEAL

100"

1шт.

Installed on Top Edge of Main Frame to Seal the Side Doors. One Piece Sevices Both Side Doors.

1шт.

13

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

12шт.

14

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

15

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

17

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

12шт.

18

86619800

FLANGE NUT,M6 x 1, Cl 8

8шт.

19

84133493

RUBBER STRIP

1шт.

20

86610198

INSERT,M6 x 1

4шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

22

84133495

SHIM

1/ARшт.

23

84133496

SHIM

1/ARшт.

24

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

4шт.

25

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

26

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

6шт.

27

80756

COTTER PIN,1/8" x 3/4"

6шт.

28

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 29
