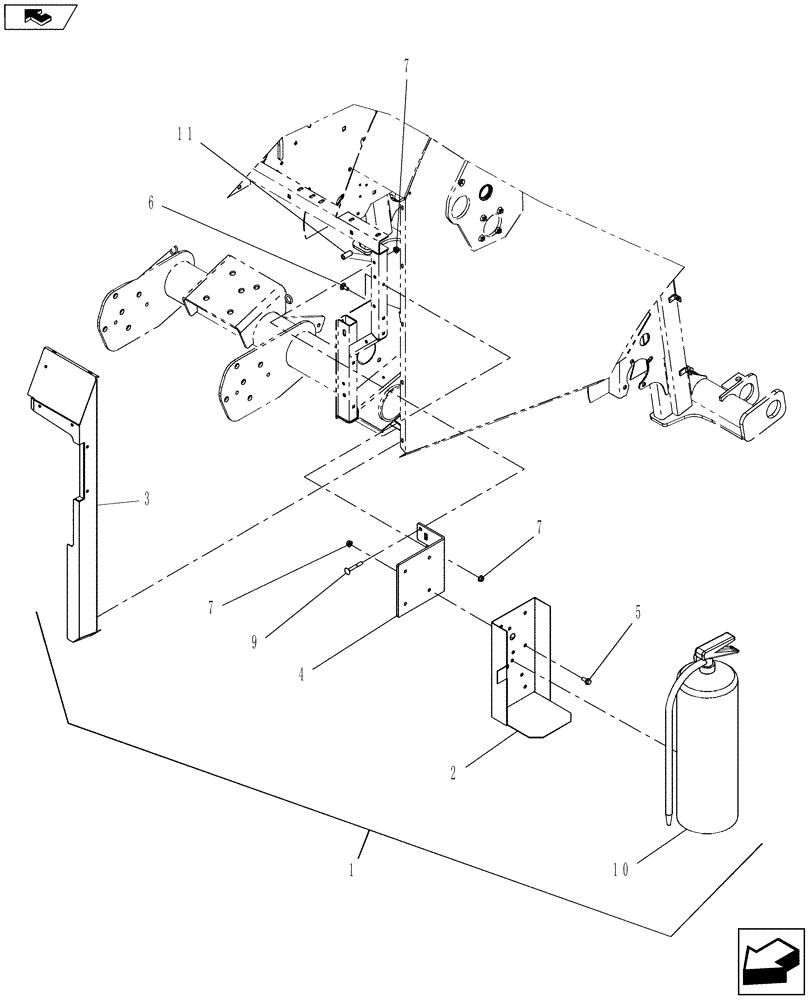

Запчасти Case IH RB455A (88.510.02) - DIA KIT, FIRE EXTINGUISHER, NET BALERS (88) - ACCESSORIES

1

84133613

DIA KIT, HARVESTER

Fire Extinguisher, Net Balers, Includes: Ref. 2 - 11

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84271991

MOUNT

1шт.

3

84133542

FILLER

1шт.

4

84133545

MOUNT

1шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

7шт.

8

84134387

INSTRUCTION

1шт.

9

86512421

CARRIAGE BOLT,Sq Nk, M8 x 60mm, Cl 8.8

2шт.

10

9827423

FIRE EXTINGUISHER,Classification A

1шт.

11

87051682

SPACER

2шт.
