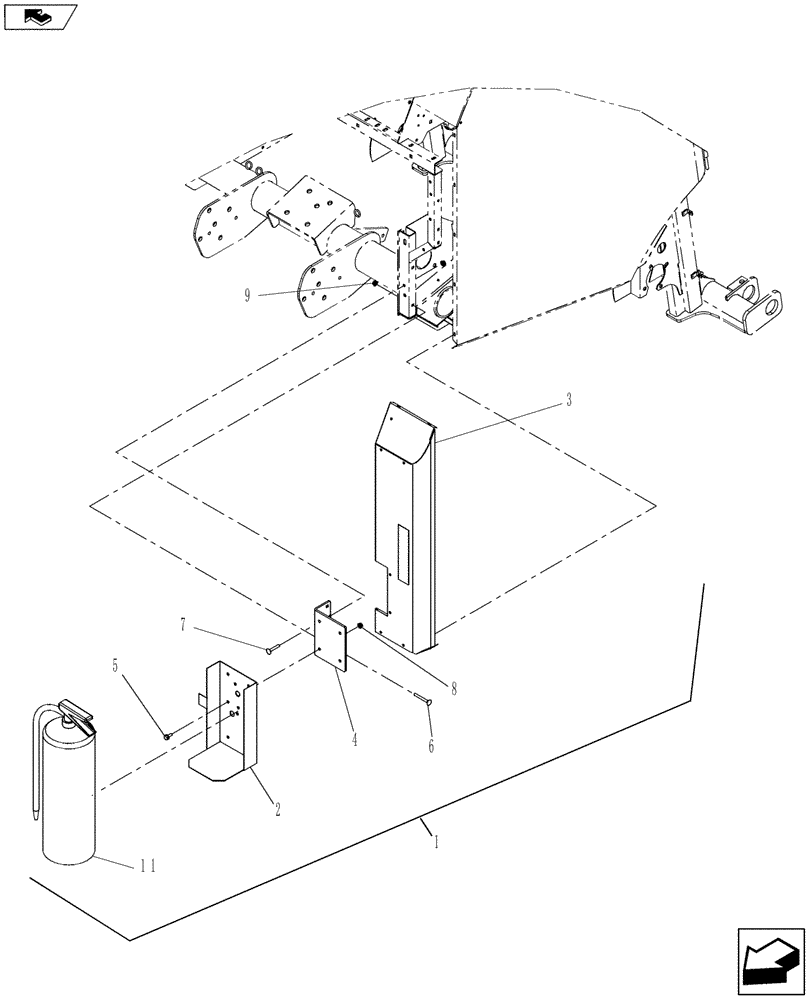

Запчасти Case IH RB455A (88.510.01) - DIA KIT, FIRE EXTINGUISHER, TWINE BALERS (88) - ACCESSORIES

1

84133612

DIA KIT, HARVESTER

Fire Extinguisher, Twine Balers, Includes: Ref. 2 - 11

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84271991

MOUNT

1шт.

3

84133548

FILLER

1шт.

4

84271991

MOUNT

1шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

80300660

SCREW

2шт.

7

86559150

CARRIAGE BOLT,Sht Nk, M8 x 50mm, Cl 8.8

1шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

9

86050303

NUT

2шт.

10

84134387

INSTRUCTION

1шт.

11

9827423

FIRE EXTINGUISHER,Classification A

1шт.
