(88.100.03) - DIA KIT, CONTROL BOX MOUNT, UNIVERSAL

Запчасти Case IH RB455A (88.100.03) - DIA KIT, CONTROL BOX MOUNT, UNIVERSAL (88) - ACCESSORIES

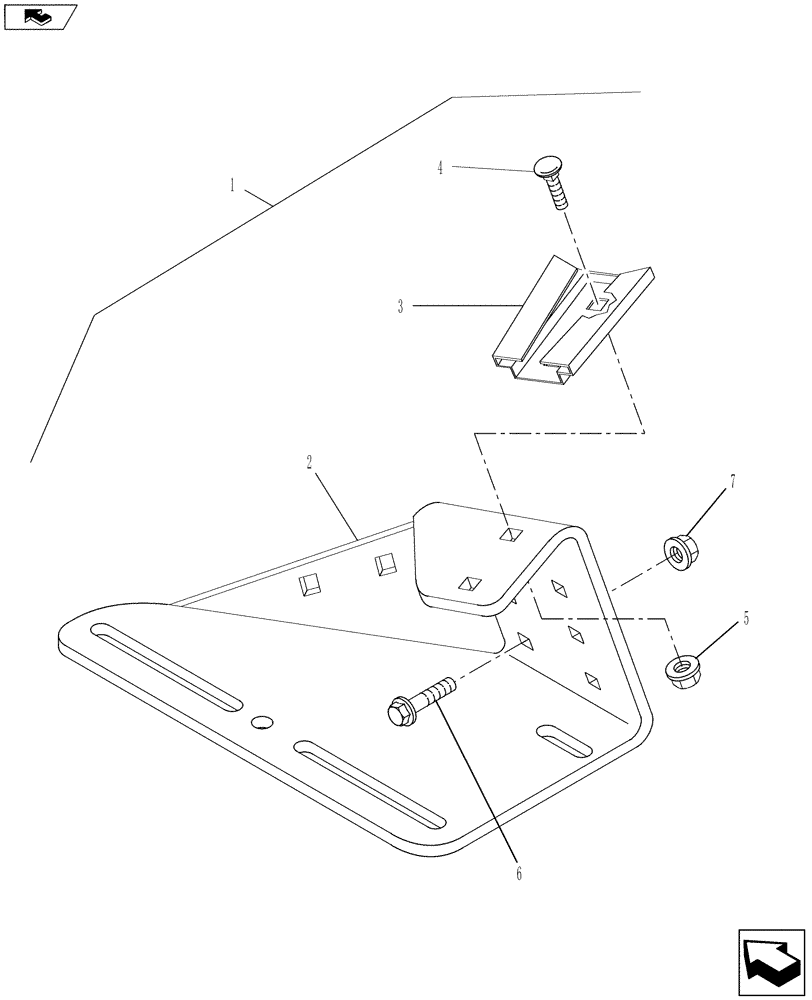

Схема запчастей Case IH RB455A - (88.100.03) - DIA KIT, CONTROL BOX MOUNT, UNIVERSAL (88) - ACCESSORIES
6
home
2
1
7
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84134365

DIA KIT, HARVESTER

Control Box Mount, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86622259

BRACKET

1шт.

3

847590

BRACKET

Socket

1шт.

4

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

5

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

6

86511479

BOLT,Hex Flg, M8 x 20mm

6шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.
