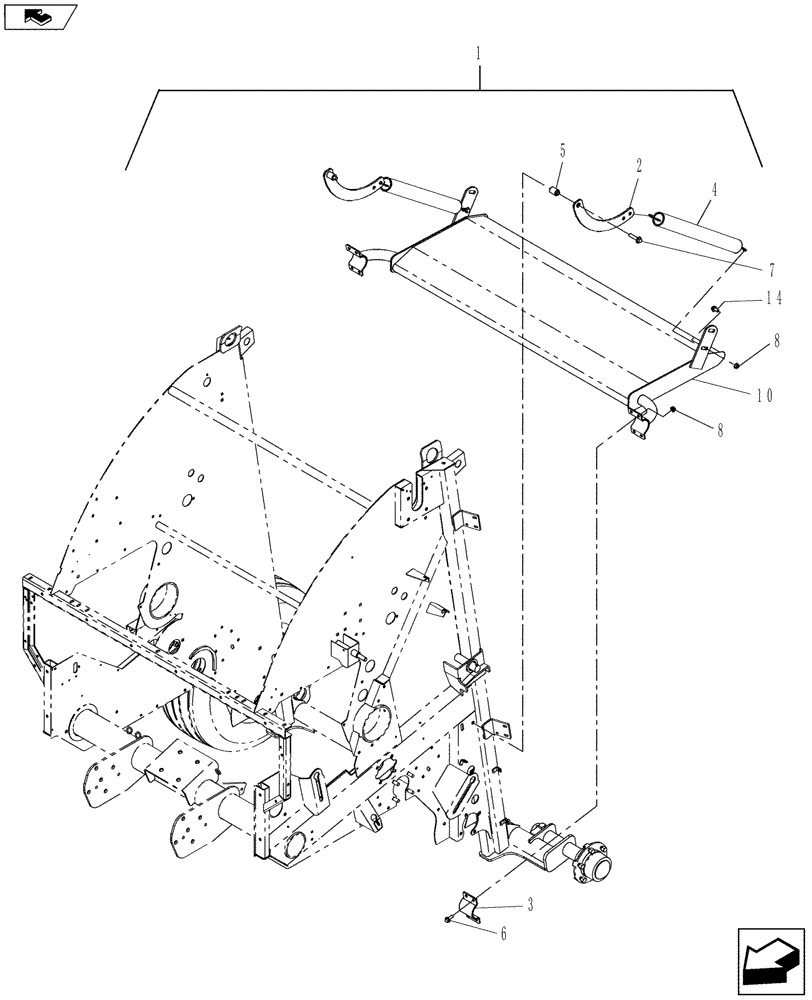

Запчасти Case IH RB455A (88.070.01) - DIA KIT, BALE KICKER (88) - ACCESSORIES

1

84227916

DIA KIT, HARVESTER

Bale Ramp, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84245053

LINK

2шт.

3

84258675

MOUNT

2шт.

4

86514028

SPRING

2шт.

5

84262009

SPACER

2шт.

6

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

7

9804270

BOLT,Hex, M12 x 60mm, Cl 8.8

2шт.

8

43435

FLANGE NUT,Hex, M10 x 1.5

10шт.

9

84134383

INSTRUCTION

Bale Ramp Kit

1шт.

10

84258674

EJECTOR

Bale

1шт.

14

9804270

BOLT,Hex, M12 x 60mm, Cl 8.8

2шт.
