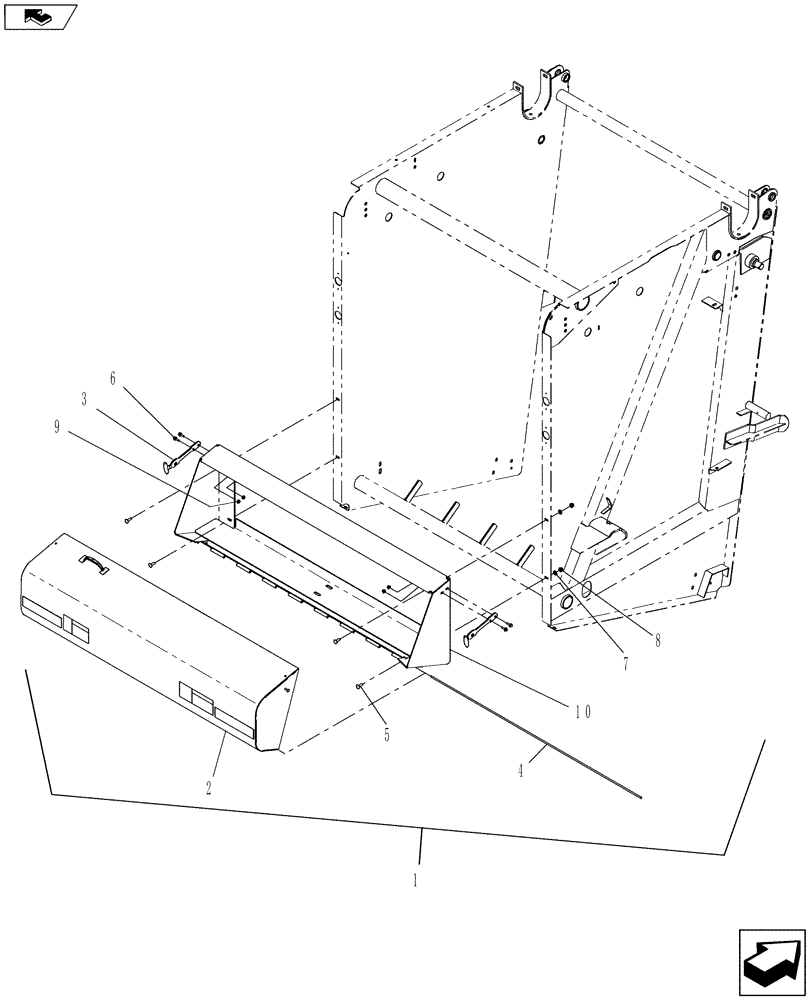

Запчасти Case IH RB455A (88.068.04) - DIA KIT, REAR NET STORAGE (88) - ACCESSORIES

1

84354115

DIA KIT, HARVESTER

1шт.

2

84379818

LID

Net Storage

1шт.

3

86000448

LATCH

2шт.

4

9617447

ROLL PIN

1шт.

5

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

6

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

10

87577454

BOX

Net Storage

1шт.
