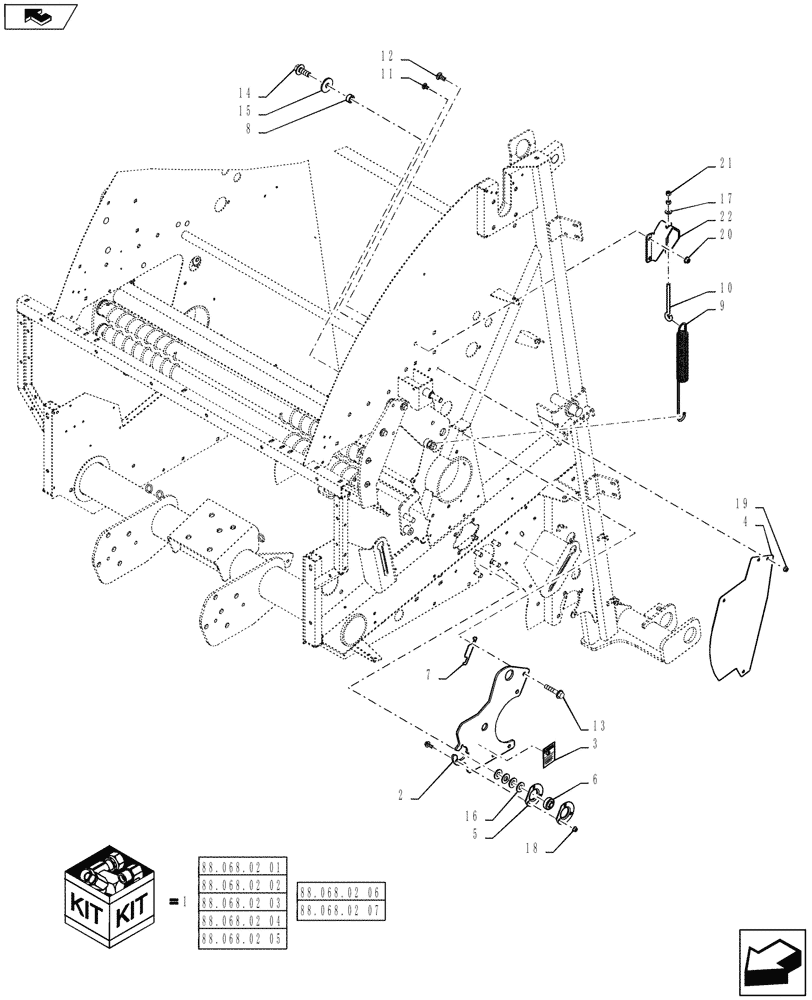

Запчасти Case IH RB455A (88.068.02[05]) - DIA KIT, DELUXE NET, NET WRAP, LH (88) - ACCESSORIES

1

84134336

DIA KIT, HARVESTER

Standard Net

1шт.

Includes: Parts Shown on Figures 88.068.01 01 thru 07.

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84300957

SUPPORT

LH, Includes: Ref. 3

1шт.

3

84370406

WARNING DECAL

1шт.

4

84236824

PLATE

1шт.

5

87017557

FLANGE

4шт.

6

66006

BALL BEARING,15.88mm ID x 40mm OD x 12mm W

1шт.

7

84235613

SHIM

2шт.

8

13702

SPACER

1шт.

9

87028495

SPRING

1шт.

10

631201

EYEBOLT

1шт.

11

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

12

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

13

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

4шт.

14

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

1шт.

15

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

1шт.

16

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

6/ARшт.

17

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

1шт.

18

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

20

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

21

9628503

NUT,3/8"-16, G5

2шт.

22

84255706

MOUNTING PLATE

1шт.
