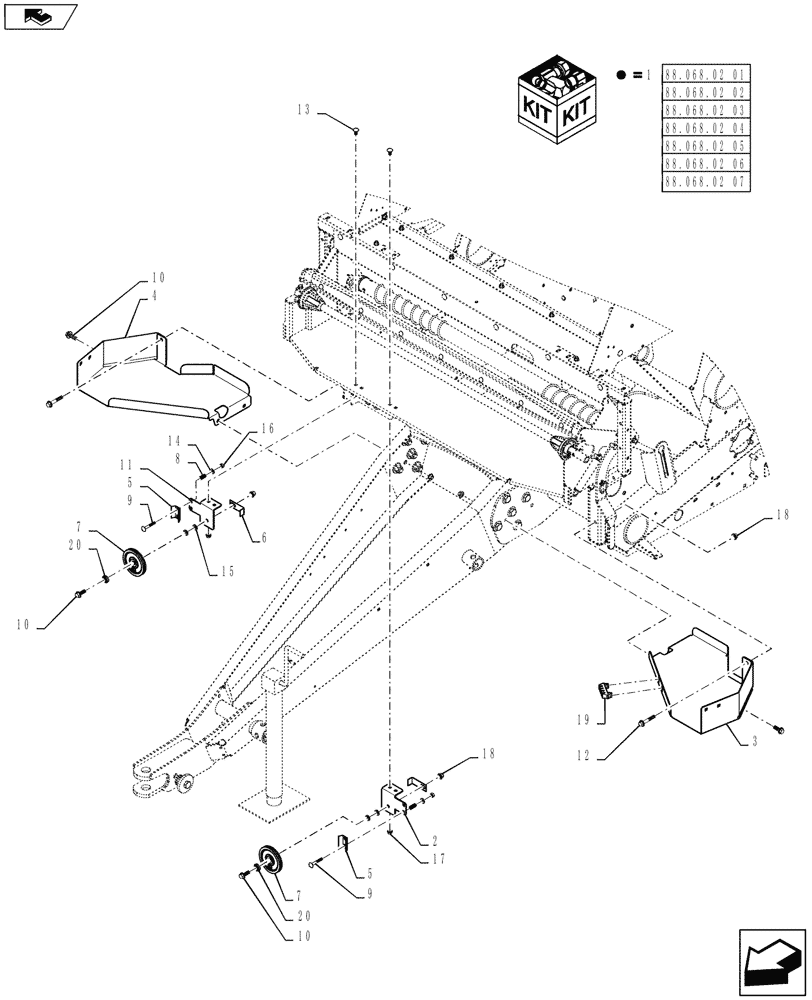

Запчасти Case IH RB455A (88.068.02[03]) - DIA KIT, DELUXE NET, TWINE BOX (88) - ACCESSORIES

1

84134345

DIA KIT, HARVESTER

Deluxe Net

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

Includes: Parts Shown on Figures 88.068.02 01 thru 07.

1шт.

2

84237857

MOUNT

LH

1шт.

3

84255919

TWINE BOX

LH

1шт.

4

84255913

TWINE BOX

RH

1шт.

5

9820171

BRACKET

2шт.

6

86629062

GUIDE

Includes: Ref. 20

2шт.

7

87038785

PULLEY ASSY.

2шт.

8

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

4шт.

9

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

4шт.

10

9804262

BOLT,M10 x 39.2mm, Cl 8.8

6шт.

11

84269565

MOUNT

RH

1шт.

12

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

13

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

14

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

15

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

16

353308

NUT,M6 x 1.0, Cl 8

4шт.

17

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

18

9804278

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

19

52367

HOLDER

Shear Bolt

1шт.

20

748669

BALL BEARING,10mm ID x 30mm OD x 9mm W

2шт.

21

84134393

INSTRUCTION

1шт.
