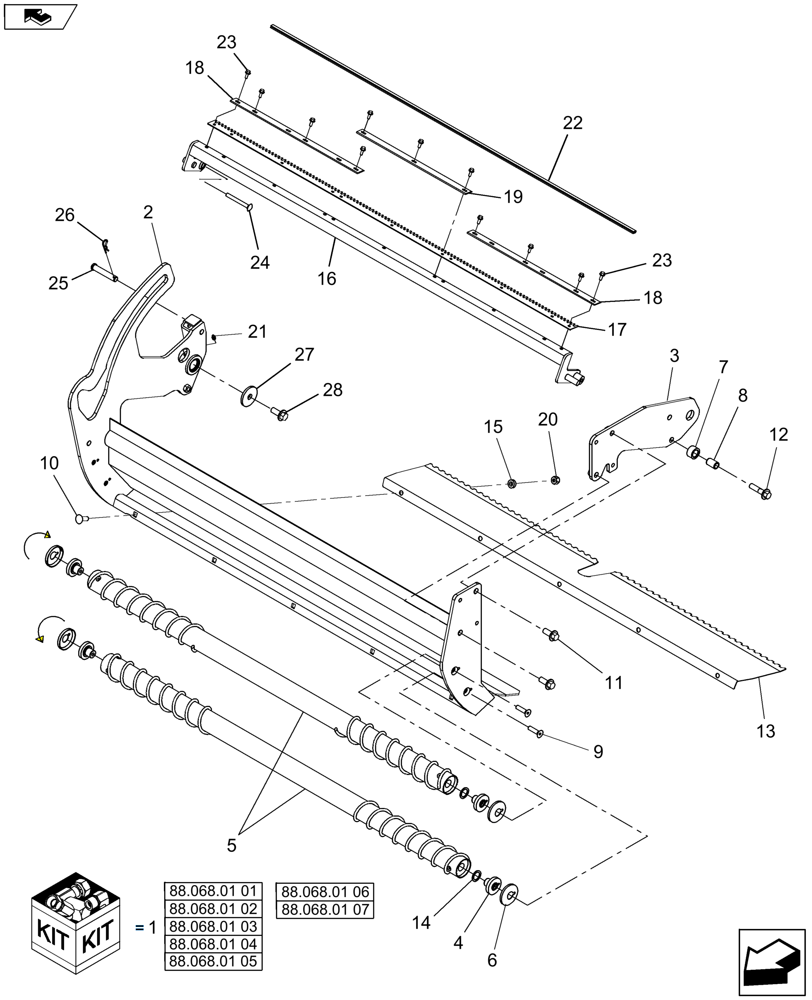

Запчасти Case IH RB455A (88.068.01[07]) - DIA KIT, STANDARD NET, DUCKBILL & NET KNIFE (88) - ACCESSORIES

1

84134336

DIA KIT, HARVESTER

Standard Wrap

1шт.

Includes: Parts Shown on Figures 88.068.01 01 thru 07.

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84273504

FRAME

1шт.

3

86622388

ARM

1шт.

4

86517336

SUPPORT

4шт.

5

86614003

ROLLER

2шт.

6

86622552

SHIELD

4шт.

7

65957

BUSHING,18.23mm ID x 28.61mm OD x 15.75mm W

1шт.

8

255189

SPACER

1шт.

9

280760

HEX SOC SCREW,FLAT, 3/8" - 16 x 1-1/2"

4шт.

10

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

5шт.

11

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

2шт.

12

9671487

BOLT,Hex, M12 x 50mm, Cl 8.8

1шт.

13

84269561

BAFFLE

1шт.

14

794034

WASHER,20.96mm ID x 28.7mm OD x 1.7mm Thk

2шт.

15

87577038

RUBBER WASHER,10.5mm ID x 20mm OD x 6.35mm Thk

5шт.

16

86628019

KNIFE ASSY

1шт.

17

86617811

PLATE

1шт.

18

86593724

KNIFE,445.8mm L x 38.1mm W x 3.4mm Thk

2шт.

19

9806864

KNIFE,382mm L x 38.1mm W x 3.4mm Thk

1шт.

20

412141

NUT,M10 x 1.5, Cl 8

5шт.

21

87414

LUBE NIPPLE,1/4" - 28

1шт.

22

PL

PROCURE LOCALLY

Edging, Approx. 4' Required

4/ARшт.

23

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

7шт.

24

412189

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 80mm, Cl 8.8

1шт.

25

87675529

PIN,12.5mm OD x 69.85mm L

2шт.

26

270964

COTTER PIN,3/8" x 1.62" x .094", Int Hair

2шт.

27

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

1шт.

28

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

2шт.
