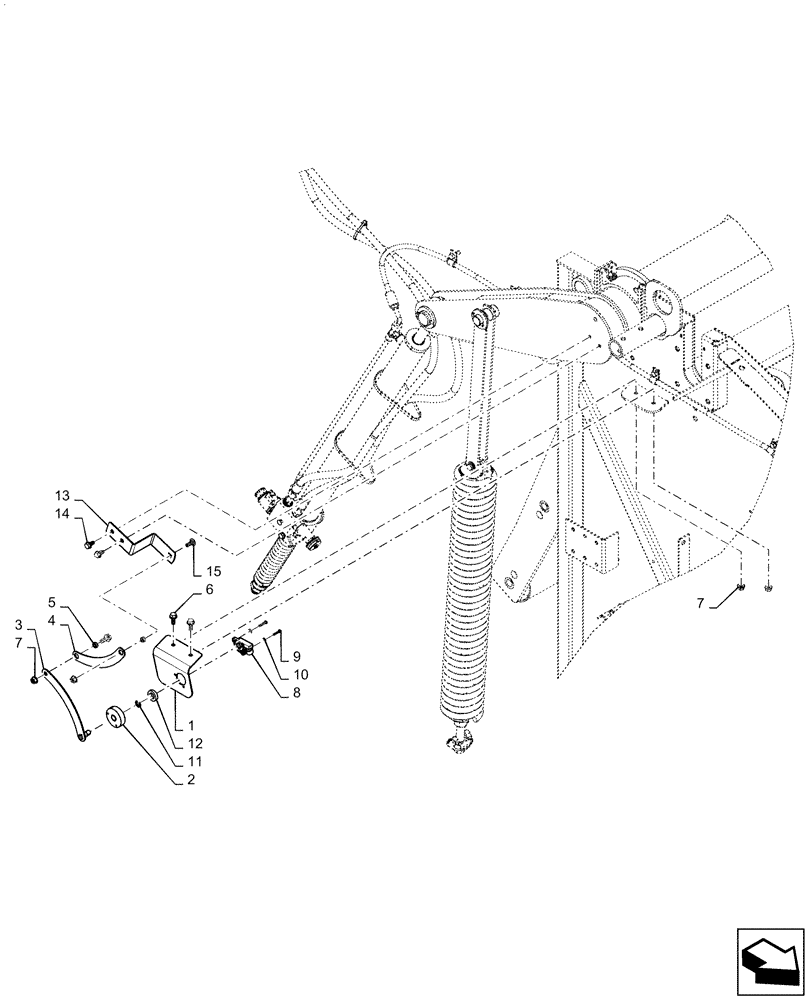

Запчасти Case IH RB455 (55.629.AC[02]) - BALE SIZE SENSOR (55) - ELECTRICAL SYSTEMS

1

84378286

BRACKET

1шт.

2

84308004

HUB

1шт.

3

84379022

ARM

1шт.

4

84378404

ARM

1шт.

5

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

2шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

8

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Bale Size

1шт.

9

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

10

9672521

LOCK WASHER,Ext Tooth, #10

2шт.

11

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

12

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

1шт.

13

84521583

BRACKET

1шт.

14

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

2шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.
