Запчасти Case IH RB455 (55.100.DP[01]) - WIRE HARNESS, MAIN (55) - ELECTRICAL SYSTEMS

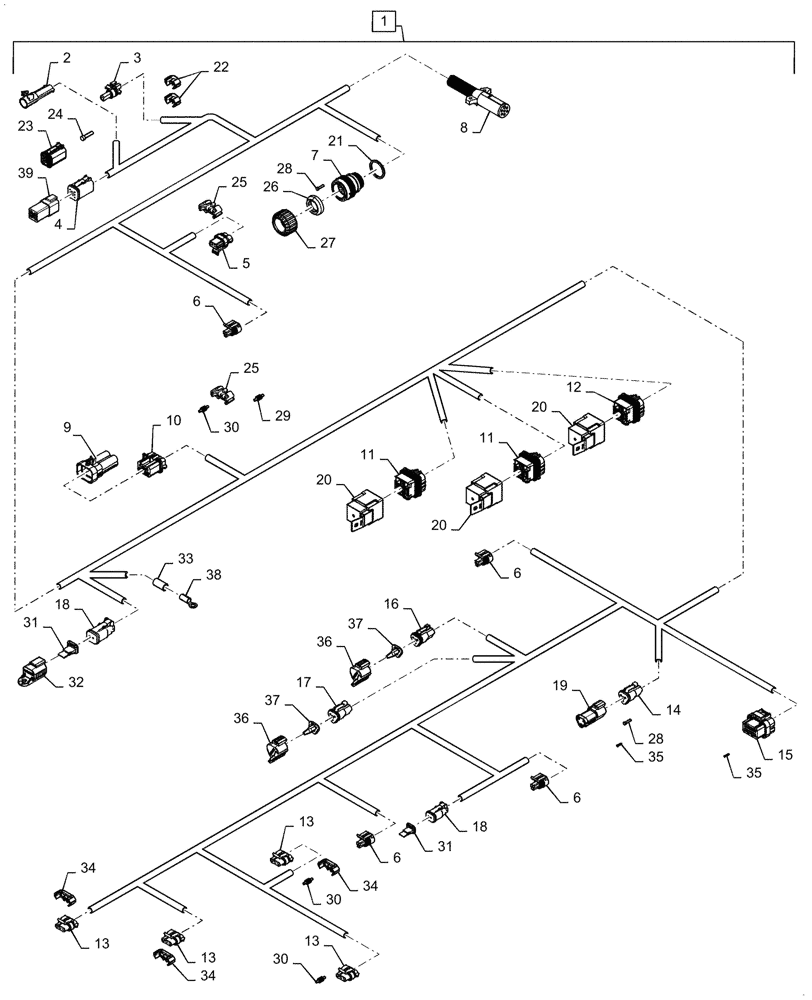

Схема запчастей Case IH RB455 - (55.100.DP[01]) - WIRE HARNESS, MAIN (55) - ELECTRICAL SYSTEMS
30
39
30
15
23
16
32
8
6
2
29
33
31
6
38
35
3
30
5
28
22
7
4
36
19
28
25
21
14
13
18
25
20
24
13
17
10
6
18
31
11
36
1
37
13
13
34
20
35
37
26
20
9
6
34
11
12
27
34

Артикул

Название

Примечание

Количество

1

47504521

WIRE HARNESS

Standard, BA, Incl 2 - 38

1шт.

2

87697527

ELEC CONNECTOR,Male, 1 Pole

X-005A Brake Light Override

1шт.

3

87697528

ELEC CONNECTOR,Female, 1 Pole

X-005B Brake Light Override

1шт.

4

87694112

ELEC CONNECTOR,Female, 6 Pole

X-002 Lighting Control Module

1шт.

5

87679438

WIRE CONNECTOR,Female

X-051 Twine Wrap Motor

1шт.

6

87418311

ELEC CONNECTOR,Female, 3 Cavities

X-010 Twine Arm Position Sensor, X-28, LH Bale Shape Sensor, X-29 RH Bale Shape Sensor, X-30 Bale Size Sensor

4шт.

7

84324036

ELEC CONNECTOR

X-012 Baler to Tractor

1шт.

8

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

X-001 Light Connector

1шт.

9

84569736

WIRE CONNECTOR

X-055 Net Option Connector

1шт.

10

84566003

WIRE CONNECTOR

X-055 Net Option Connector

2шт.

11

84423677

X-020 Motor Direction Relay B, X-021 Motor Direction Relay

MULTIPOLE CONNECTOR

2шт.

12

87692853

MULTIPOLE CONNECTOR,Female, 4 Pole

X-049 Power Relay

1шт.

13

87688716

ELEC CONNECTOR,Female, 3 Cavities

X-003 LH Stop/Tail Light, X-004 LH Hazard Tail Light, X-006 RH Stop/Tail Light, X-007 RH Hazard Tail Light, X-028

5шт.

14

87695580

ELEC CONNECTOR,Female, 3 Pole

X-009 CAN Termination Resistor

1шт.

15

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

X-060 Intermediate Control Mosule

1шт.

16

87695549

ELEC CONNECTOR,Female, 3 Cavities

X-069B Bypass Option, Grey

1шт.

17

87695580

ELEC CONNECTOR,Female, 3 Pole

X069P Pre-Charge Option, Black

1шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

X-035 Bale Ramp Option Connector, X-048A Tailgate Awitch, RH

2шт.

19

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

20

82017871

RELAY,12V, 20A

3шт.

21

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

1шт.

22

87704919

LOCKING TAB,Wedge Lock

2шт.

23

87694112

ELEC CONNECTOR,Female, 6 Pole

1шт.

24

84068583

PLUG,12 - 16 Ga, White

1шт.

25

84806458

COLLAR

1шт.

26

87696199

SEALING RING

1шт.

27

87696197

NUT

1шт.

28

84068583

PLUG,12 - 16 Ga, White

1шт.

29

87715495

PLUG

2шт.

30

87689636

PLUG,Red, Taxi Seal Connector Cavity

1шт.

31

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

32

84391159

WIRE CONNECTOR

1шт.

33

84128198

HEAT SHIELD

1шт.

34

87693732

LOCKING TAB,Wedge Lock

4шт.

35

84147090

LOCKING TAB,Wedge Lock

1шт.

35

82017049

PLUG

1шт.

36

84391165

HOUSING,Male, 3 Pins

2шт.

37

84074639

LOCKING TAB,Wedge Lock

2шт.

38

84401280

TERMINAL,Straight, 1/4"

X-107 Frame Ground

1шт.

39

87537164

WIRE HARNESS

ANZ Jumper

1шт.

Выбрано товаров: 40
