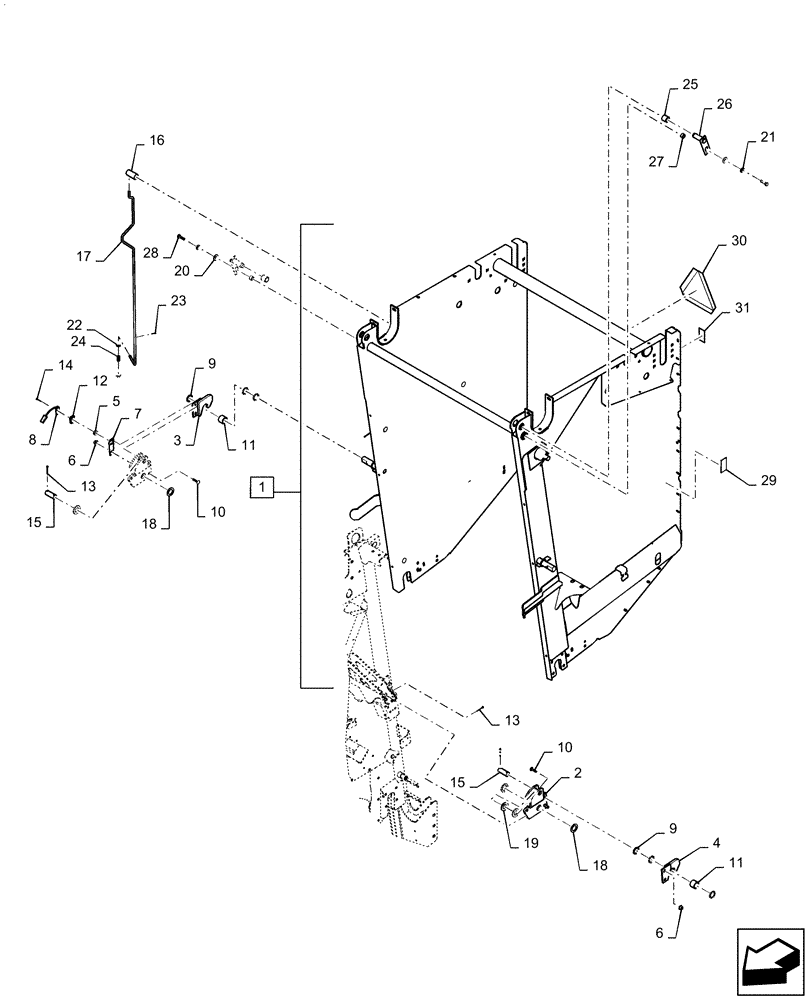

Запчасти Case IH RB455 (39.100.AV[01]) - TAILGATE, YGN192827 AND PRIOR (39) - FRAMES AND BALLASTING

1

47623827

TAILGATE

Incl 29 - 30, Serial Range: -YGN192827

1шт.

2

47540586

LATCH

Tailgate

2шт.

3

47853346

HOOK

RH

1шт.

4

47853260

HOOK

LH

1шт.

5

86900323

NUT,#10 - 24

2шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

7

84387467

BRACKET

1шт.

8

86594422

SENSOR

Tailgate

1шт.

9

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

8шт.

10

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

4шт.

11

9600196

SPACER,32.23mm ID x 39.7mm OD x 29.98mm L

2шт.

12

86624468

SPACER,1.65" L x 5/16” Thk

Tailgate Sensor

1шт.

13

87399

COTTER PIN,1/2 x 3 Bolt

8шт.

14

86900322

SCREW,Phillips Drive, Truss HD, #10 - 24 x 1-1/4", SST

2шт.

15

166065

PIN,25.4mm OD x 66.5mm L

2шт.

16

86554798

PIN,31.7mm OD x 66mm L

1шт.

17

86554799

ROD,1232.7mm L

1шт.

18

64972

WASHER,32.54mm ID x 50.8mm OD x 3.43mm Thk

4шт.

19

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

20

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

22

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

23

80756

COTTER PIN,1/8" x 3/4"

1шт.

24

34019

SPRING,Compression, 9/16" OD x 2-5/16" L

1шт.

25

26306

DRIVE BUSHING,25.47mm ID x 31.82mm OD x 31.8mm L

2шт.

26

86546201

PIN

75mm L

2шт.

26

47919326

PIN

90mm L

2шт.

27

86977433

SPACER,13.11mm ID x 19.05mm OD x 12.7mm Thk

2шт.

28

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

29

86516139

CAUTION DECAL

Pinch Hazard

3шт.

30

86547711

DECAL,SMV

1шт.

31

47361241

WARNING DECAL

Crush Hazard

1шт.
