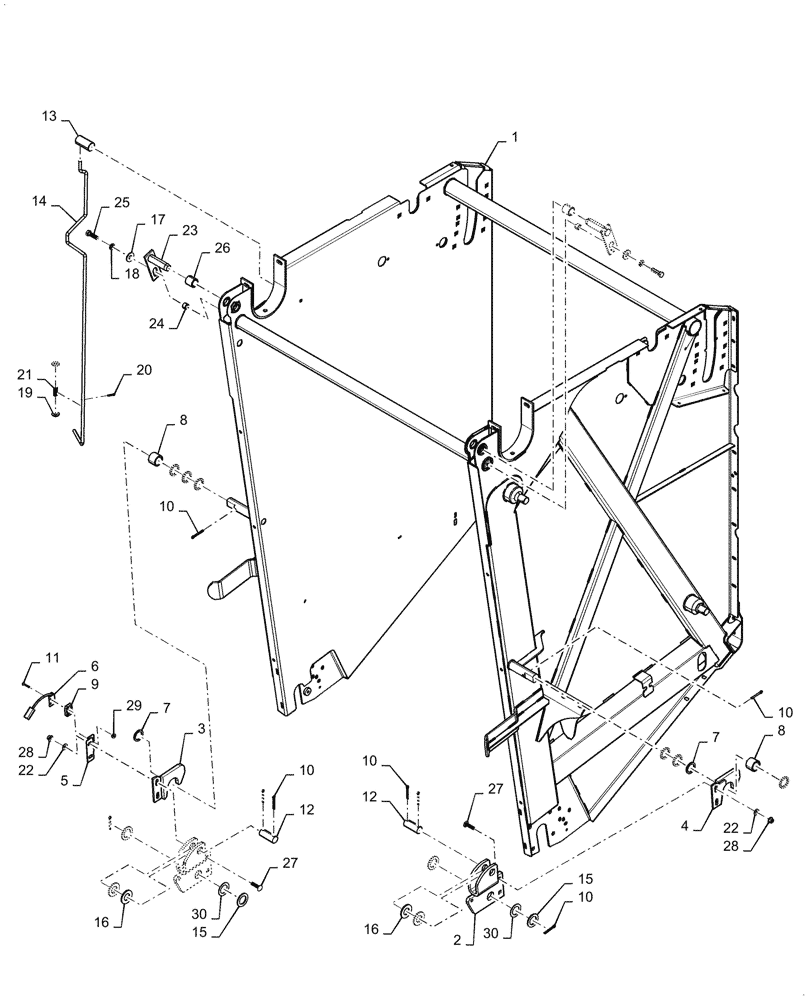

Запчасти Case IH RB455 (39.100.AV[01]) - TAILGATE ,YGN193203 AND AFTER (39) - FRAMES AND BALLASTING

1

47973713

TAILGATE

Dual Cylinder

1шт.

2

47540586

LATCH

Tailgate

2шт.

3

47853346

HOOK

Tailgate, RH

1шт.

4

47853261

HOOK

Tailgate, LH

1шт.

5

84387467

BRACKET

Tailgate Sensor

1шт.

6

86594422

SENSOR

Tailgate

1шт.

7

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

8шт.

8

9600196

SPACER,32.23mm ID x 39.7mm OD x 29.98mm L

2шт.

9

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

10

87399

COTTER PIN,1/2 x 3 Bolt

8шт.

11

86900322

SCREW,Phillips Drive, Truss HD, #10 - 24 x 1-1/4", SST

2шт.

12

166065

PIN,25.4mm OD x 66.5mm L

2шт.

13

86554798

PIN,31.7mm OD x 66mm L

1шт.

14

86554799

ROD,1232.7mm L

1шт.

15

64972

WASHER,32.54mm ID x 50.8mm OD x 3.43mm Thk

4шт.

16

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

20

80756

COTTER PIN,1/8" x 3/4"

1шт.

21

34019

SPRING,Compression, 9/16" OD x 2-5/16" L

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

23

47919326

PIN

Tailgate

2шт.

24

86977433

SPACER,13.11mm ID x 19.05mm OD x 12.7mm Thk

2шт.

25

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

26

26306

DRIVE BUSHING,25.47mm ID x 31.82mm OD x 31.8mm L

2шт.

27

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

4шт.

28

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

29

86900323

NUT,#10 - 24

2шт.

30

27696

WASHER,1.281" ID x 2" OD x .060" Thk

2шт.
