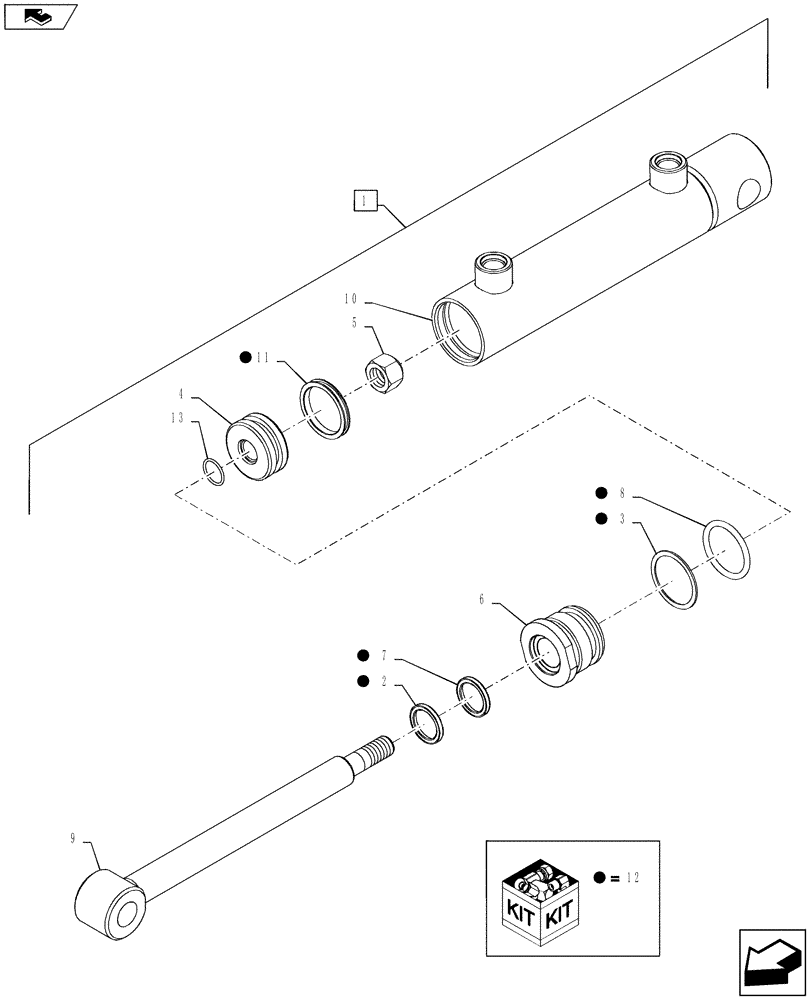

Запчасти Case IH RB455 (35.569.AB) - HYDRAULIC CYLINDER, DROP FLOOR (35) - HYDRAULIC SYSTEMS

1

87029395

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 119.89mm Stroke

Drop Floor, Incl 2 - 13

2шт.

Manufacturer's Production Date Stamp - (ex. M 02 2012 = M / week / year )

1шт.

2

514100

OIL SEAL

Wiper

1шт.

3

514099

WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk

Back-Up, 1.266 ID x .043 Thk

1шт.

4

87029766

PISTON,1/2" ID x 1-1/2" OD x 1/2" Thk

1шт.

5

88130

NUT,1/2"-20, GC

1шт.

6

87029765

CYLINDER END CAP

1шт.

7

9826108

SEAL,19.28mm ID x 25.2mm OD x 5.03mm Thk

1шт.

8

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

9

87030035

PISTON ROD

1шт.

10

NSS

NOT SOLD SEPARAT

Barrel, Incl in 1

1шт.

11

86605608

SEAL,31.34mm ID x 38.1mm OD x 4.75mm Thk

Piston

1шт.

12

87029768

SEAL KIT

Incl in 1

1шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
