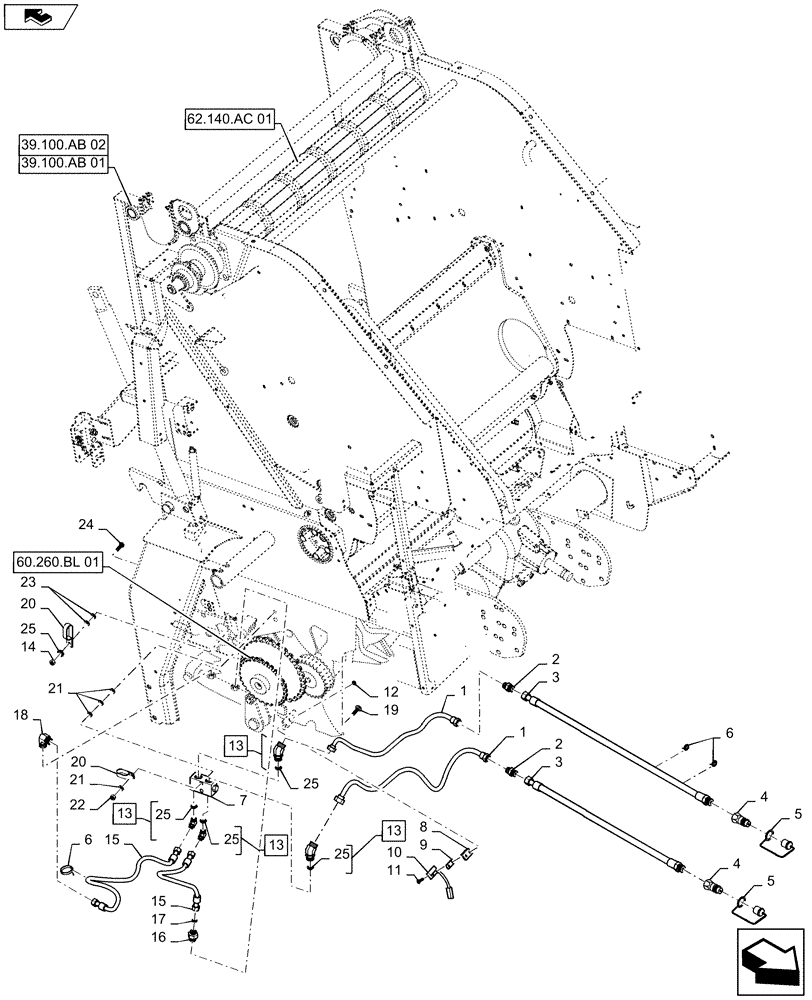

Запчасти Case IH RB455 (35.565.AB[02]) - VAR - 726914 - ROTOR HYDRAULIC SYSTEM, RH (35) - HYDRAULIC SYSTEMS

1

84422400

HYDRAULIC HOSE,9.53mm ID x 1850mm L, SAE 100R17

2шт.

2

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

3

84474326

HYDRAULIC HOSE,9.53mm ID x 2800mm L, SAE 100R17

2шт.

4

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

5

87017807

DUST CAP

Red

2шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

3шт.

7

85802820

CHECK VALVE

Load

1шт.

8

86624468

SPACER,1.65" L x 5/16” Thk

1шт.

9

86642946

BAR

1шт.

10

86594422

SENSOR

Rotor Knife

1шт.

11

86900322

SCREW,Phillips Drive, Truss HD, #10 - 24 x 1-1/4", SST

2шт.

12

86900323

NUT,#10 - 24

2шт.

13

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 25

5шт.

14

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

15

47484111

HYDRAULIC HOSE,6.35mm ID x 610mm L

2шт.

16

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 25

1шт.

17

261066

ORIFICE,9/16" - 18, 0.813" Orifice

1шт.

18

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 25

1шт.

19

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

2шт.

20

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

22

9706690

NUT,M8 x 1.25, Cl 8

2шт.

23

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

24

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.
