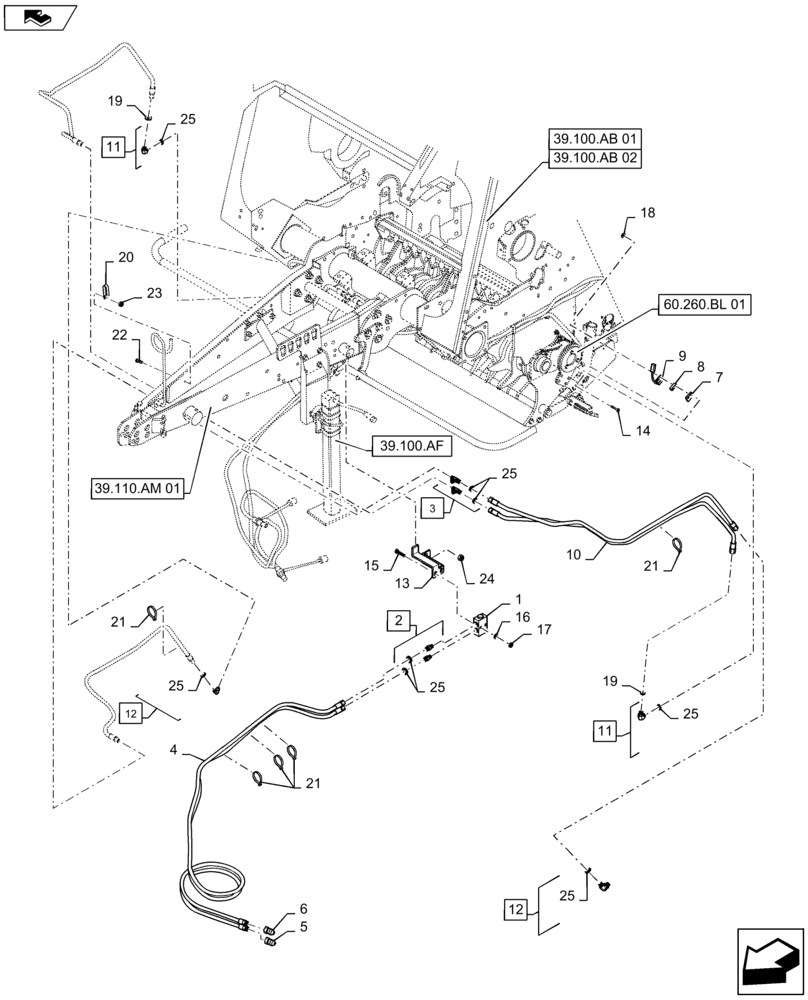

Запчасти Case IH RB455 (35.565.AB[01]) - VAR - 726914 - ROTOR HYDRAULIC SYSTEM, LH (35) - HYDRAULIC SYSTEMS

1

85802820

CHECK VALVE

Load Check

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 25

2шт.

3

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 25

2шт.

4

84419297

HYDRAULIC HOSE,9.53mm ID x 3048mm L, SAE 100R17

3048mm

2шт.

5

9801618

QUICK MALE COUPLING,1/2" - 14

Male Coupling

2шт.

6

87017808

DUST CAP

Blue

2шт.

7

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

8

86642946

BAR

1шт.

9

86594422

SENSOR

Rotor Knife

1шт.

10

84422400

HYDRAULIC HOSE,9.53mm ID x 1850mm L, SAE 100R17

1шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 25

2шт.

12

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 25

2шт.

13

84422404

SUPPORT

1шт.

14

86900322

SCREW,Phillips Drive, Truss HD, #10 - 24 x 1-1/4", SST

2шт.

15

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

16

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

17

9706690

NUT,M8 x 1.25, Cl 8

2шт.

18

86900323

NUT,#10 - 24

2шт.

19

261066

ORIFICE,9/16" - 18, 0.813" Orifice

2шт.

20

620019

CLAMP

Hose

2шт.

21

86566989

CABLE TIE,208mm L

12шт.

22

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

24

86000441

NUT,M16 x 2.0, Cl 8

2шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

Not Ilustrated

1шт.

26

87024765

CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type

2шт.
