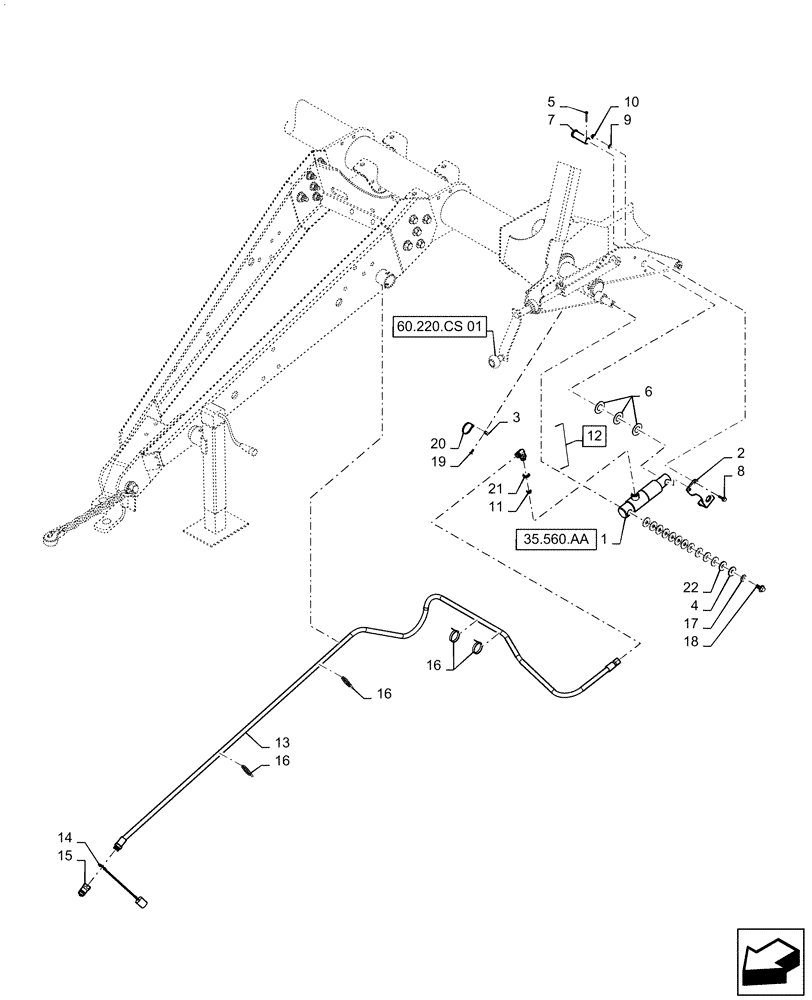

Запчасти Case IH RB455 (35.560.AA[01]) - VAR - 726867 - HYDRAULIC SYSTEM, PICK-UP LIFT (35) - HYDRAULIC SYSTEMS

1

87056843

HYDRAULIC CYLINDER,38.1mm Rod, 76.2mm Stroke

Pickup Lift

1шт.

2

47449802

CHANNEL

Cylinder Mount

1шт.

3

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

4

86637848

WASHER,13.5mm ID x 38.1mm OD x 3.68mm Thk

1шт.

5

86632563

HEADED PIN,1" OD x 4-1/4" L, Gr 2

1шт.

6

27318

WASHER,26mm ID x 51mm OD x 1.5mm Thk

3шт.

7

80753

COTTER PIN,1/4" x 1 1/2"

1шт.

8

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

261066

ORIFICE,9/16" - 18, 0.813" Orifice

1шт.

12

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 21

1шт.

13

86836356

HOSE,9.53mm ID x 4673.6mm L, SAE 100R17

1шт.

14

87017806

DUST CAP,Green

1шт.

15

9801618

QUICK MALE COUPLING,1/2" - 14

1шт.

16

263117

CABLE TIE,292.1mm L, Nylon, Black

4шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

18

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

19

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

20

86566989

CABLE TIE,208mm L

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

86637848

WASHER,13.5mm ID x 38.1mm OD x 3.68mm Thk

12шт.
