Запчасти Case IH RB455 (35.550.AC[01]) - VAR - 727160 - TAILGATE, HYDRAULIC LIFT, STANDARD EJECT, YFN188619 AND AFTER (35) - HYDRAULIC SYSTEMS

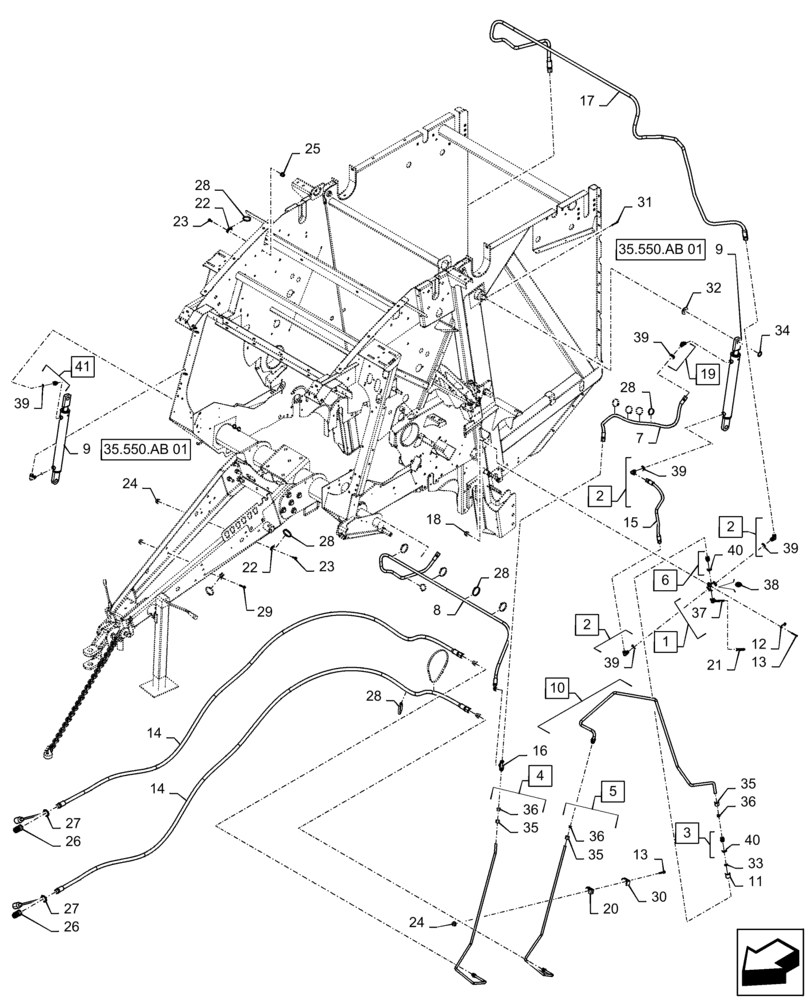

Схема запчастей Case IH RB455 - (35.550.AC[01]) - VAR - 727160 - TAILGATE, HYDRAULIC LIFT, STANDARD EJECT, YFN188619 AND AFTER (35) - HYDRAULIC SYSTEMS
13
26
19
9
28
39
23
9
32
24
4
17
35
26
18
22
39
30
8
39
38
36
28
35.550.ab 01
25
16
13
39
28
41
35
24
7
21
28
27
12
27
10
22
40
11
23
31
5
20
2
37
28
34
36
36
15
33
35
6
35.550.ab 01
3
14
2
29
40
39
1
2
14

Артикул

Название

Примечание

Количество

1

84606149

VALVE WITH LEVER

Incl 38, 38

1шт.

2

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Incl 39

4шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 40

1шт.

4

47860631

HYD TUBE

9mm ID x 12mm OD, SAE J525, Incl 35, 36

1шт.

5

47860625

HYD TUBE

.37"ID x .50" OD, SAE J525, Incl 35, 36

1шт.

6

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

Incl 40

1шт.

7

47736727

HYDRAULIC HOSE,10mm ID x 1270mm L, SAE 100R17

1шт.

8

47736820

HYDRAULIC HOSE,10mm ID x 2840mm L, SAE 100R17

1шт.

9

87517395

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 373.38mm Stroke

Tailgate Lift, Standard Eject

2шт.

10

47860613

HYD TUBE

.37"ID x .50" OD, SAE J525, Incl 35, 36

1шт.

11

47843875

HYD CONNECTOR,3/4" - 16 x 3/4" - 16

1шт.

12

84416929

PLATE

1шт.

13

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

5шт.

14

47733861

HYDRAULIC HOSE,10mm ID x 3690mm L, SAE 100R17

2шт.

15

47721222

HYDRAULIC HOSE,10mm ID x 650mm L, SAE 100R17

1шт.

16

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

17

47862228

HYDRAULIC HOSE,10mm ID x 3937mm L, SAE 100R17

1шт.

18

353308

NUT,M6 x 1.0, Cl 8

5шт.

19

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Incl 39

2шт.

20

431941

SUPPORT

3шт.

21

47576842

HANDLE GRIP

1шт.

22

84407295

BASE

5шт.

23

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

24

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

25

86610200

THREADED INSERT,M8 x 1.25

3шт.

26

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

27

86621124

DUST CAP

Black

2шт.

28

87034173

CABLE TIE,774.7mm L

21шт.

29

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

30

430357

CLAMP

6шт.

31

87399

COTTER PIN,1/2 x 3 Bolt

1шт.

32

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

33

86517438

ORIFICE

1шт.

34

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

2шт.

35

129428

TUBE NUT,37 Degree, 3/4"-16, Type B

1шт.

36

235671

SLEEVE,37 Degree, 1/2" Tube

1шт.

37

47382486

VALVE LEVER

1шт.

38

47382510

SEAL KIT

1шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 40
