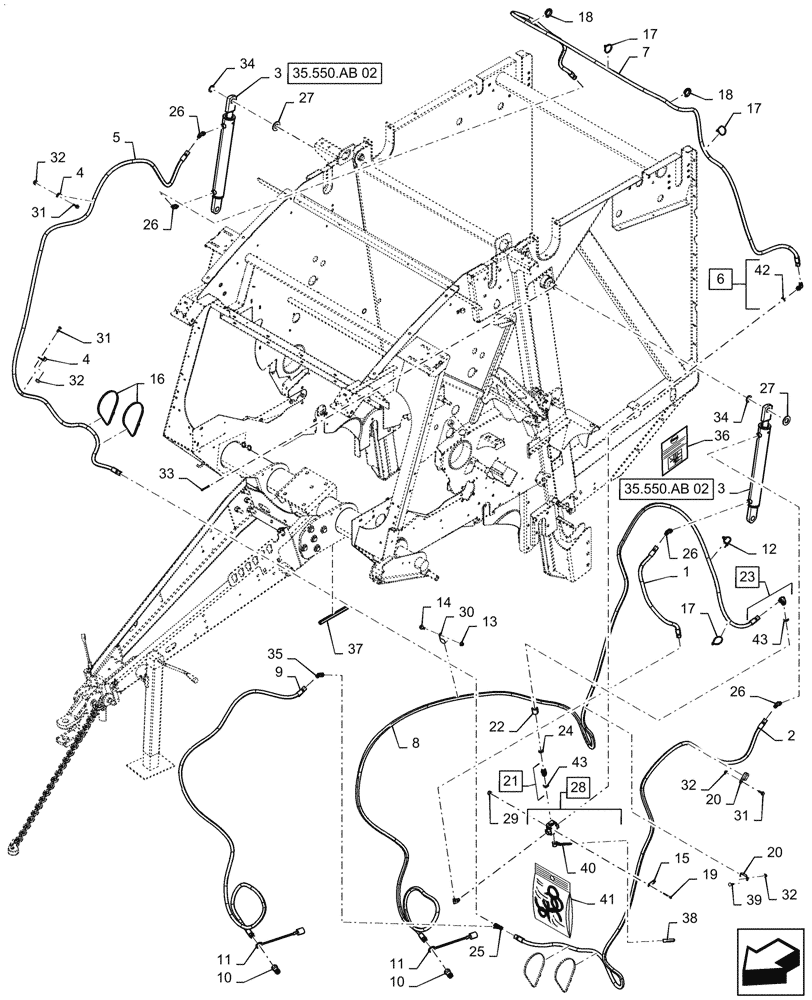

Запчасти Case IH RB455 (35.550.AC[01]) - TAILGATE, HYDRAULIC LIFT, YFN188618 AND PRIOR (35) - HYDRAULIC SYSTEMS

1

84494122

HYDRAULIC HOSE

30" Long, SAE -8, Female 37° JIC Fittings, 9/16"-18

1шт.

2

47483745

HOSE

144" Long, SAE -6, Female 37° JIC Fittings, 9/16"-18

1шт.

3

87517397

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 373.38mm Stroke

Tailgate Lift

2шт.

4

711051

CLAMP

3шт.

5

47483714

HOSE

157" Long, SAE -6, Female 37° JIC Fittings, 9/16"-18

1шт.

6

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 42

1шт.

7

47483710

HOSE

137" Long, SAE -6, Female 37° JIC Fittings, 9/16"-18

1шт.

8

47665564

HYDRAULIC HOSE

264" Long, SAE -8, Female 37° JIC Fittings, 3/4" -16 & 1/2"-14 Male NPT

1шт.

9

84419297

HYDRAULIC HOSE,9.53mm ID x 3048mm L, SAE 100R17

120" Long, SAE -8, Female 37° JIC Fittings, 3/4" -16 & 1/2"-14 Male NPT

1шт.

10

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

11

86621124

DUST CAP

Black

2шт.

12

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

13

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

14

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

15

84416929

PLATE

1шт.

16

87034173

CABLE TIE,774.7mm L

4шт.

17

86566989

CABLE TIE,208mm L

14шт.

18

NH291525

EDGE

1шт.

19

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

20

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

5шт.

21

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

Union, Straight Thread 3/4"-16, Incl 43

1шт.

22

592188

COUPLING

1шт.

23

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 43

1шт.

24

86517438

ORIFICE

Plate

1шт.

25

86513104

TEE,9/16"-18, 37 Degree, Blkhd

1шт.

26

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

5шт.

27

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

28

84606149

VALVE WITH LEVER

Incl 40, 41

1шт.

29

353308

NUT,M6 x 1.0, Cl 8

1шт.

30

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

31

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

32

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

33

87399

COTTER PIN,1/2 x 3 Bolt

2шт.

34

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

2шт.

35

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

36

NSS

NOT SOLD SEPARAT

WARNING Decal

1шт.

37

87490545

PROTECTION STRIP

1шт.

38

47576842

HANDLE GRIP

1шт.

39

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

40

47382486

VALVE LEVER

1шт.

41

47382510

SEAL KIT

1шт.

42

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.
