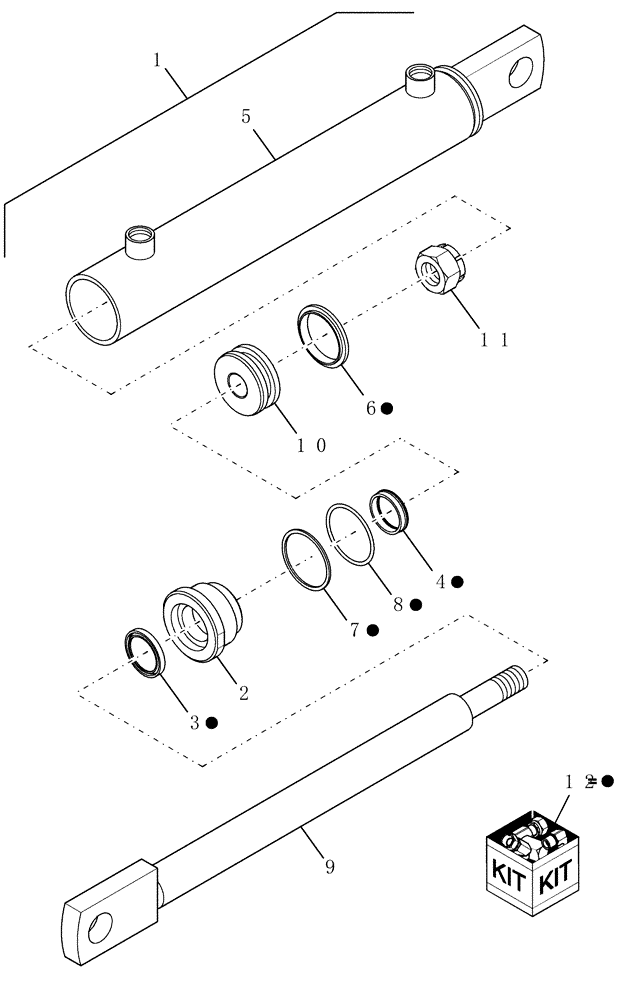

Запчасти Case IH RB455 (35.550.AB[01]) - TAILGATE, HYDRAULIC CYLINDER, YFN188618 AND PRIOR (35) - HYDRAULIC SYSTEMS

1

87517397

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 373.38mm Stroke

Tailgate Lift

1шт.

2

87025720

HEAD

Cylinder

1шт.

3

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

4

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

Double-Lip, 1.50" OD x 1.25" ID x .250" Tk.

1шт.

5

NSS

NOT SOLD SEPARAT

Cylinder

1шт.

6

86553483

SEAL

Piston, 3 Piece

1шт.

7

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

8

510120

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

9

87025722

PISTON ROD

1шт.

10

87025721

PISTON

1шт.

11

280724

LOCK NUT,3/4" - 16

1шт.

12

87025441

SEAL KIT

1шт.
