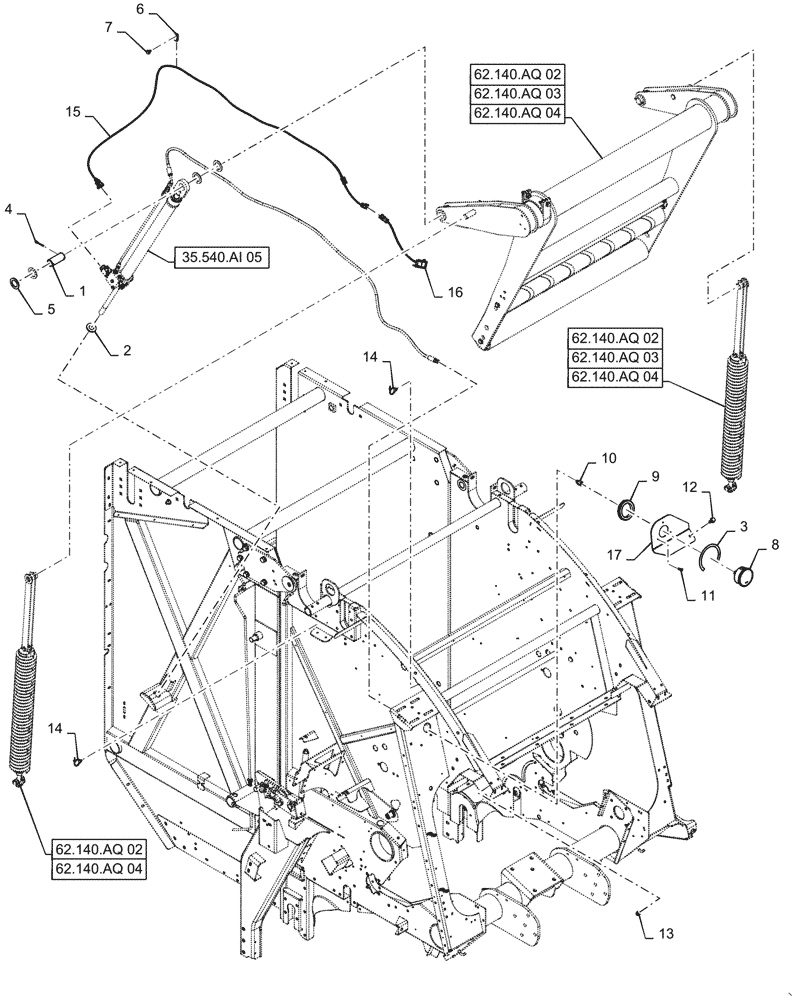

Запчасти Case IH RB455 (35.540.AK[02]) - VAR - 726813, 727097 - BELT TENSION, SINGLE HYDRAULIC CYLINDER, WITH BYPASS VALVE (35) - HYDRAULIC SYSTEMS

1

86515940

PIN,38.1mm OD x 91.5mm L

1шт.

2

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

3

84603728

DECAL

1шт.

4

87400

COTTER PIN,3/16" x 2"

2шт.

5

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

4шт.

6

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

7

381014

SCREW,Flng, M8 x 16mm

2шт.

8

84384411

PRESSURE GAUGE,3000 PSI, 1/4" NPT

1шт.

9

529828

GROMMET,2 1/8" x 2 7/8" x 2 1/2"

1шт.

10

241971

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, Fem Pipe

1шт.

11

425520

RIVET,Pop, 3.96mm OD x 10.4mm L

3шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

14

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

15

47563962

WIRE HARNESS

Baler, BK, Used for ISOBUS Electronic Equipped Balers

1шт.

15

47563960

WIRE HARNESS

Baler, BP, Used for Standard and Deluxe Electronic Equipped Balers

1шт.

16

47564232

WIRE HARNESS

ISOBUS

1шт.

17

84399830

SUPPORT

Pressure Gauge

1шт.
