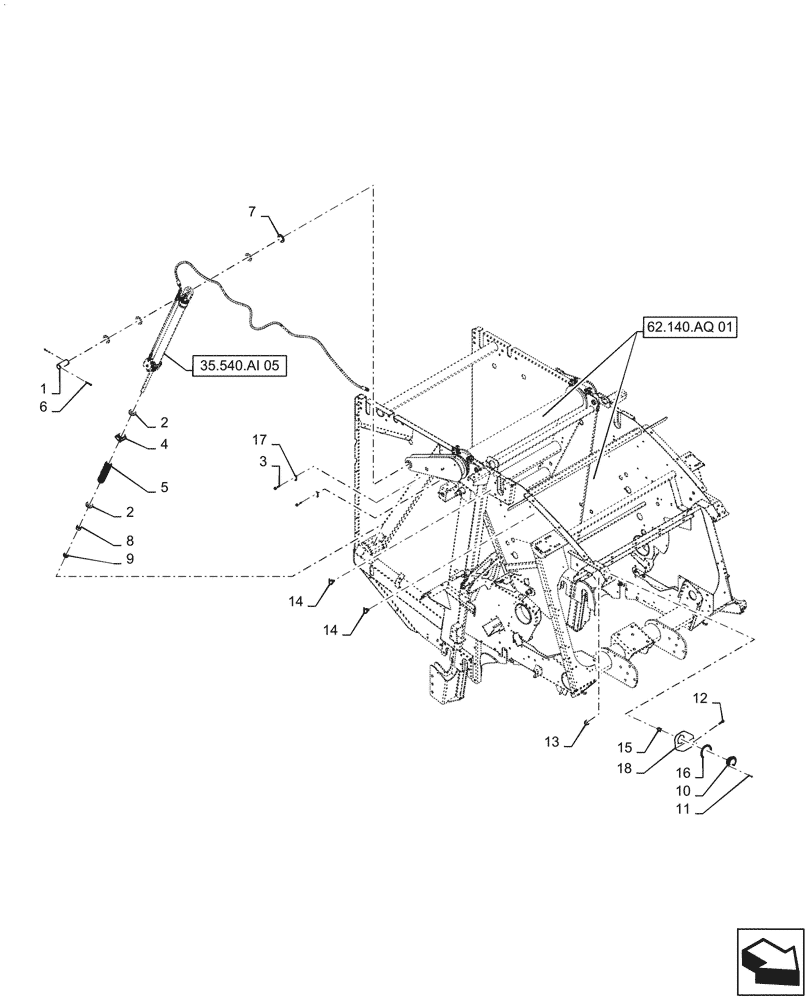

Запчасти Case IH RB455 (35.540.AK[01]) - VAR - 726813 - BELT TENSION, SINGLE HYDRAULIC CYLINDER, WITHOUT BYPASS VALVE (35) - HYDRAULIC SYSTEMS

1

86515940

PIN,38.1mm OD x 91.5mm L

1шт.

2

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

3

381014

SCREW,Flng, M8 x 16mm

2шт.

4

226131

PIVOT

1шт.

5

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

6

87400

COTTER PIN,3/16" x 2"

2шт.

7

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

4шт.

8

9849647

NUT,7/8"-9, G5

1шт.

9

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

10

84384411

PRESSURE GAUGE,3000 PSI, 1/4" NPT

1шт.

11

422520

BAR

3шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

14

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

15

241971

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, Fem Pipe

1шт.

16

84603728

DECAL

Bale Tension

1шт.

17

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

18

84399830

SUPPORT

Pressure Guage

1шт.
