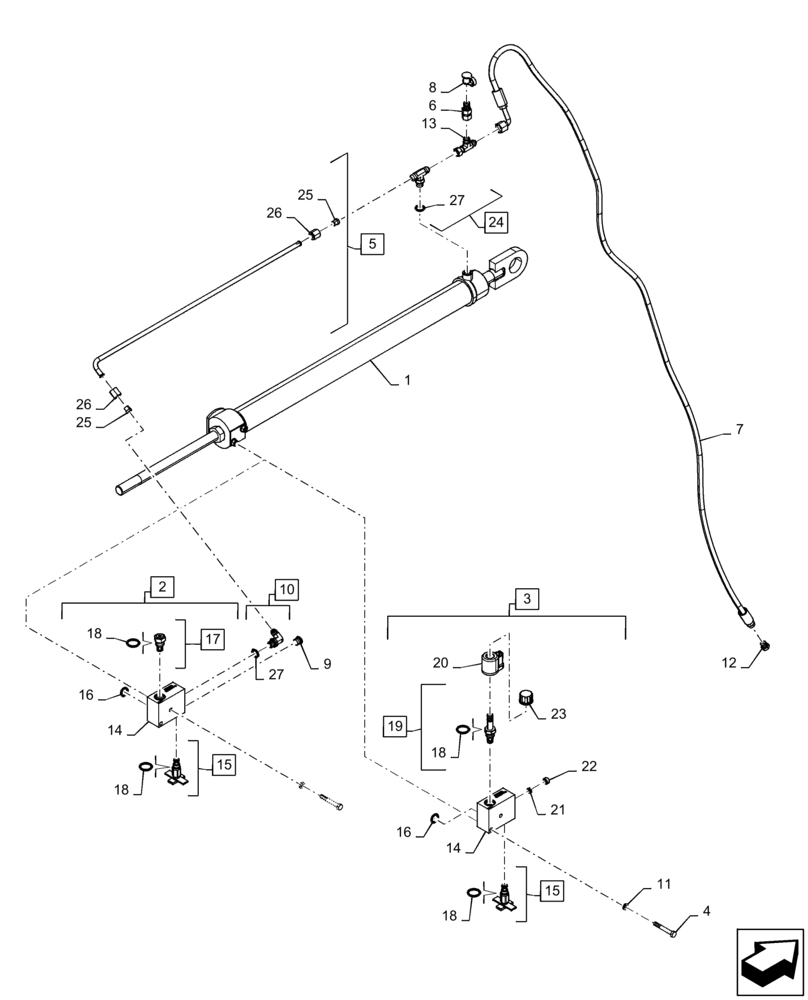

Запчасти Case IH RB455 (35.540.AI[05]) - VAR - 726813, 727097 - BALE DENSITY HYDRAULICS, SINGLE CYLINDER, YFN188618 AND PRIOR (35) - HYDRAULIC SYSTEMS

1

84549526

HYDRAULIC CYLINDER

Bale Density, Single Bypass, Serial Range: -YGN193202

1шт.

1

47860094

HYDRAULIC CYLINDER

Bale Density, Single Bypass, Start Serial: YGN193203

1шт.

2

47482872

HYDRAULIC MANIFOLD

Incl 14 - 17, , Bale Tension, 2600 PSI without Bypass

1шт.

3

47482859

HYDRAULIC MANIFOLD

Incl 14 - 16, 18 - 23, Bale Tension, 2600 PSI with Bypass

1шт.

4

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

2шт.

5

84552131

HYD TUBE

Incl 25. 26, Serial Range: -YGN193202

1шт.

5

PL

PROCURE LOCALLY

Hyd. Tubr, Incl 25, 26, Start Serial: YGN193203

1шт.

6

101792A1

COUPLING

Diagnostic

1шт.

7

84563528

HYDRAULIC HOSE,6.3mm ID x 2794mm L, SAE 100R17

1шт.

8

86502604

DUST CAP

1шт.

9

9625178

PLUG,9/16" - 18 ORB

1шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 27

1шт.

11

80681

LOCK WASHER,5/16"

2шт.

12

86513049

PLUG,9/16" - 18 JIC

1шт.

13

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

14

NSS

NOT SOLD SEPARAT

Manifold, Incl with 2, 3

1шт.

15

47604142

VALVE PRESSURE RELIE

2600 PSI, Incl 18

1шт.

16

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

17

84559455

CHECK VALVE

Incl 18

1шт.

18

377451A1

SEAL KIT

Needle, Incl with, 2, 3

3шт.

19

84558366

SOLENOID VALVE

Incl 18, 23

1шт.

20

84300102

COIL

1шт.

21

47358511

ORIFICE

0.094"

1шт.

22

47358507

RETAINER

1шт.

23

NSS

NOT SOLD SEPARAT

Cap, Incl with 3

1шт.

24

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

25

235670

SLEEVE,37 Degree, 3/8" Tube

1шт.

26

136658

TUBE NUT,0.72" Length

1шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
