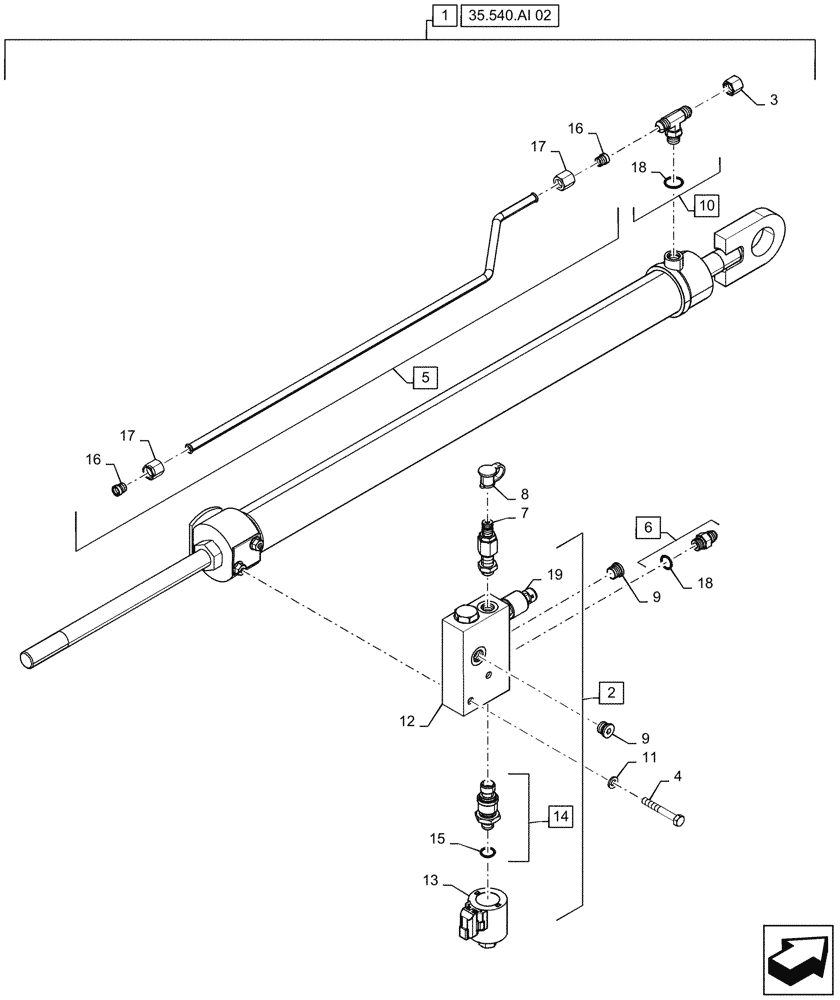

Запчасти Case IH RB455 (35.540.AI[03]) - VAR - 727159 - BALE TENSION HYDRAULICS, SINGLE CYLINDER, IN CAB CONTROL, YFN188619 AND AFTER (35) - HYDRAULIC SYSTEMS

1

84549526

HYDRAULIC CYLINDER

Bale Tension, Serial Range: -797322005

1шт.

1

47860094

HYDRAULIC CYLINDER

Bale Tension, Start Serial: 797324001

1шт.

2

47765085

HYDRAULIC VALVE

Proportional Relief, Incl 12-14, 19

1шт.

3

574342

CAP,9/16" - 18 JIC

1шт.

4

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

2шт.

5

47765917

TUBE

Incl 16-17, Serial Range: -797322005

1шт.

5

PL

PROCURE LOCALLY

Hyd. Tube, Incl 16-17, Start Serial: 797324001

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 18

1шт.

7

86013710

FITTING

Quick Connect

1шт.

8

86502604

DUST CAP

Black

1шт.

9

9625178

PLUG,9/16" - 18 ORB

2шт.

10

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 18

1шт.

11

80681

LOCK WASHER,5/16"

1шт.

12

NSS

NOT SOLD SEPARAT

Hydraulic Valve, Poppit Relief

1шт.

13

84227091

COIL

1шт.

14

47775189

HYDRAULIC VALVE

Incl 15

1шт.

15

84320139

O-RING,2.2mm Thk x 11.3mm ID

1шт.

16

235670

SLEEVE,37 Degree, 3/8" Tube

1шт.

17

136658

TUBE NUT,0.72" Length

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

19

86523197

SENSOR

1шт.
