(35.540.AI[01]) - VAR - 726813. 726815, 727097, 727098 - BALE TENSION HYDRAULIC CYLINDER, YFN188618 AND PRIOR

Запчасти Case IH RB455 (35.540.AI[01]) - VAR - 726813. 726815, 727097, 727098 - BALE TENSION HYDRAULIC CYLINDER, YFN188618 AND PRIOR (35) - HYDRAULIC SYSTEMS

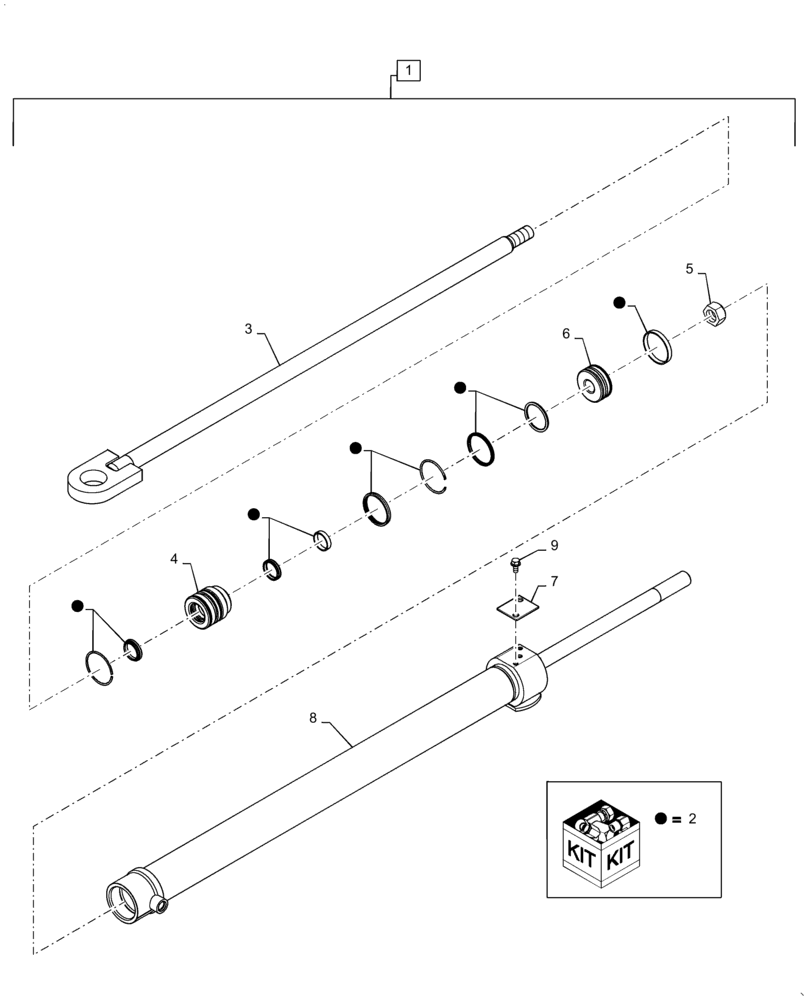

Схема запчастей Case IH RB455 - (35.540.AI[01]) - VAR - 726813. 726815, 727097, 727098 - BALE TENSION HYDRAULIC CYLINDER, YFN188618 AND PRIOR (35) - HYDRAULIC SYSTEMS
9
2
2
2
2
1
2
2
5
4
6
7
3
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84549525

HYDRAULIC CYLINDER

Hydraulic, Bale Tension, RH, Incl 2-9, Serial Range: -YGN193202

1шт.

1

47860094

HYDRAULIC CYLINDER

Hydraulic, Bale Tension, RH, Incl 2-9, Start Serial: YGN193203

1шт.

1

47624451

HYDRAULIC CYLINDER

Hydraulic, Bale Tension, LH, Incl 2-9

1шт.

2

47624424

SEAL KIT

Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Rod, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Head, Incl in 2

1шт.

5

87629

NUT,5/8"-11, GB

Nut

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Cylinder Barrel, Incl in 2

1шт.

9

PL

PROCURE LOCALLY

5/16" x 0.50" Flange Bolt

2шт.
