(31.220.AL[06]) - VAR - 726528 - GEARBOX AND DRIVE, 1000 RPM, YFN188619 AND AFTER

Запчасти Case IH RB455 (31.220.AL[06]) - VAR - 726528 - GEARBOX AND DRIVE, 1000 RPM, YFN188619 AND AFTER (31) - IMPLEMENT POWER TAKE OFF

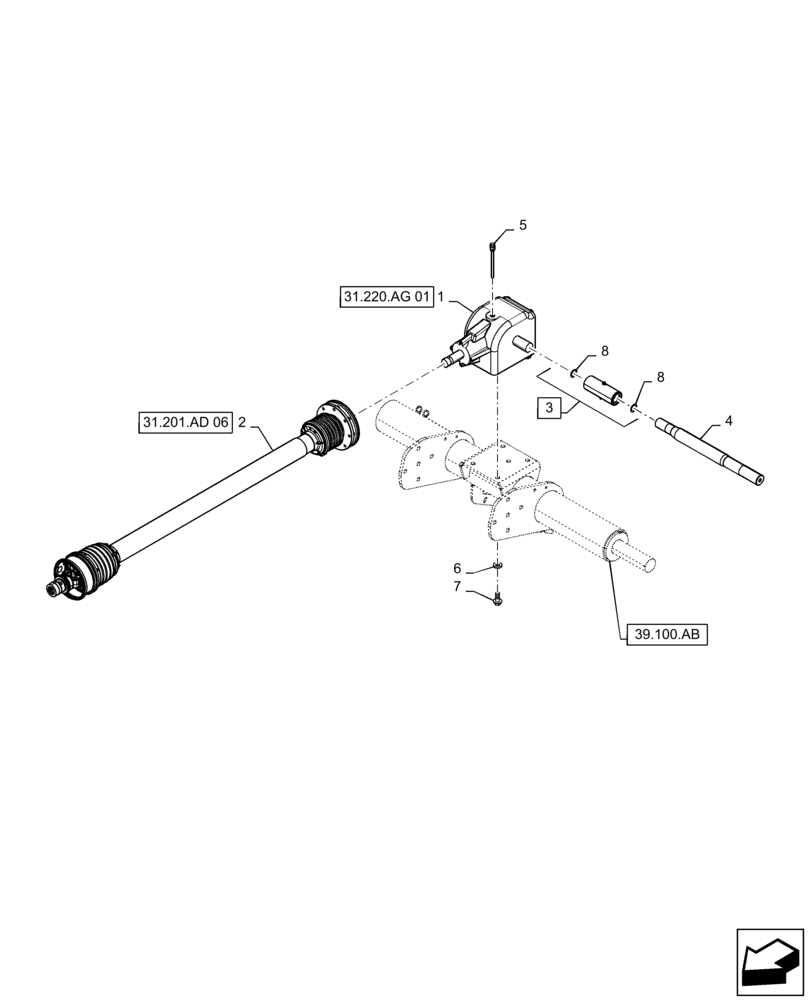

Схема запчастей Case IH RB455 - (31.220.AL[06]) - VAR - 726528 - GEARBOX AND DRIVE, 1000 RPM, YFN188619 AND AFTER (31) - IMPLEMENT POWER TAKE OFF
5
8
2
31.220.ag 01
8
6
39.100.ab
31.201.ad 06
4
7
3
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87344585

GEARBOX

1000 RPM

1шт.

2

84253256

PTO

Slip Clutch, 1000 NM

1шт.

3

86634418

COUPLING

Incl 8

1шт.

4

47623676

SHAFT

1шт.

5

86626271

DIPSTICK

1шт.

6

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

4шт.

7

9804271

BOLT,Hex, M16 x 40mm, Cl 8.8, Full Thd

4шт.

8

86637396

WASHER,25.6mm ID x 35.3mm OD x 1mm Thk

2шт.
