(31.220.AL[04]) - VAR - 726872 - GEARBOX AND DRIVE, HEAVY DUTY, 1000 RPM, YFN188618 AND PRIOR

Запчасти Case IH RB455 (31.220.AL[04]) - VAR - 726872 - GEARBOX AND DRIVE, HEAVY DUTY, 1000 RPM, YFN188618 AND PRIOR (31) - IMPLEMENT POWER TAKE OFF

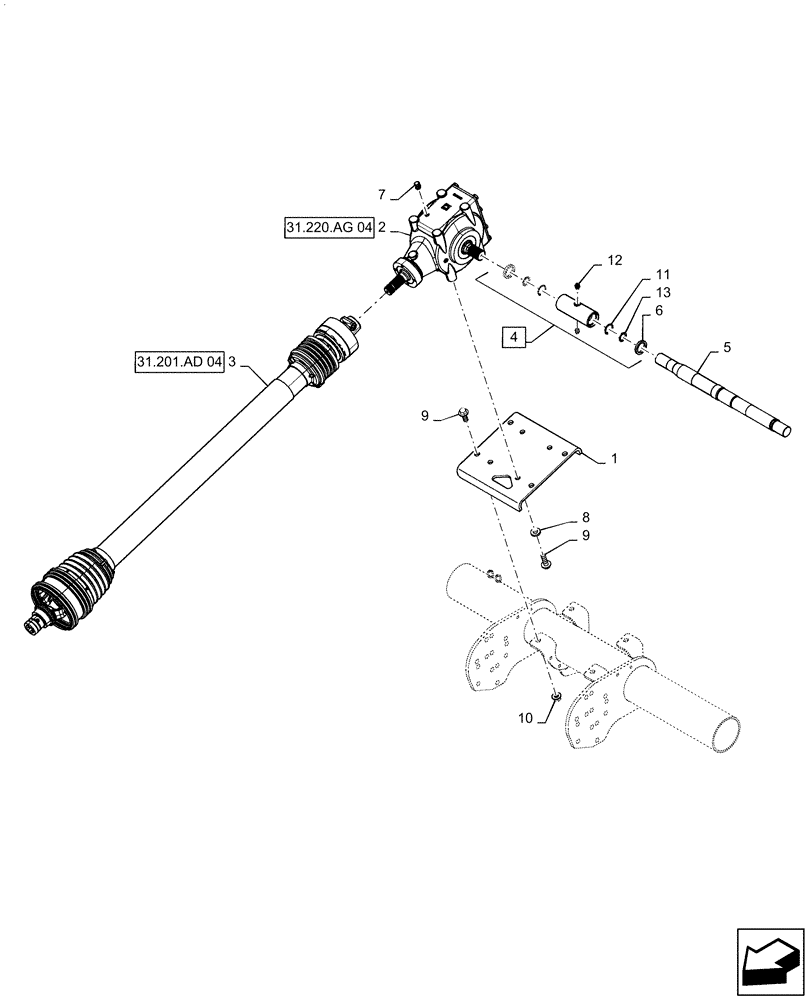

Схема запчастей Case IH RB455 - (31.220.AL[04]) - VAR - 726872 - GEARBOX AND DRIVE, HEAVY DUTY, 1000 RPM, YFN188618 AND PRIOR (31) - IMPLEMENT POWER TAKE OFF
31.220.ag 04
3
5
9
4
6
7
11
13
9
12
8
31.201.ad 04
10
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84285522

MOUNT

1шт.

2

84375100

GEARBOX

1000 RPM, Heavy Duty

1шт.

3

47372355

PTO

COC, 1200 N-M

1шт.

4

87661924

SPLINED COUPLING

Incl 6, 11 - 13

1шт.

5

84541306

DRIVE SHAFT

1шт.

6

86637396

WASHER,25.6mm ID x 35.3mm OD x 1mm Thk

2шт.

7

86539157

BREATHER,3/8" Gas

1шт.

8

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

4шт.

9

9804271

BOLT,Hex, M16 x 40mm, Cl 8.8, Full Thd

8шт.

10

9804280

FLANGE NUT,Hex, M16, Cl 8

4шт.

11

300643

SNAP RING,M38, Int

2шт.

12

62161

LUBE NIPPLE,M8 x 1.25, Str

2шт.

13

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

2шт.
