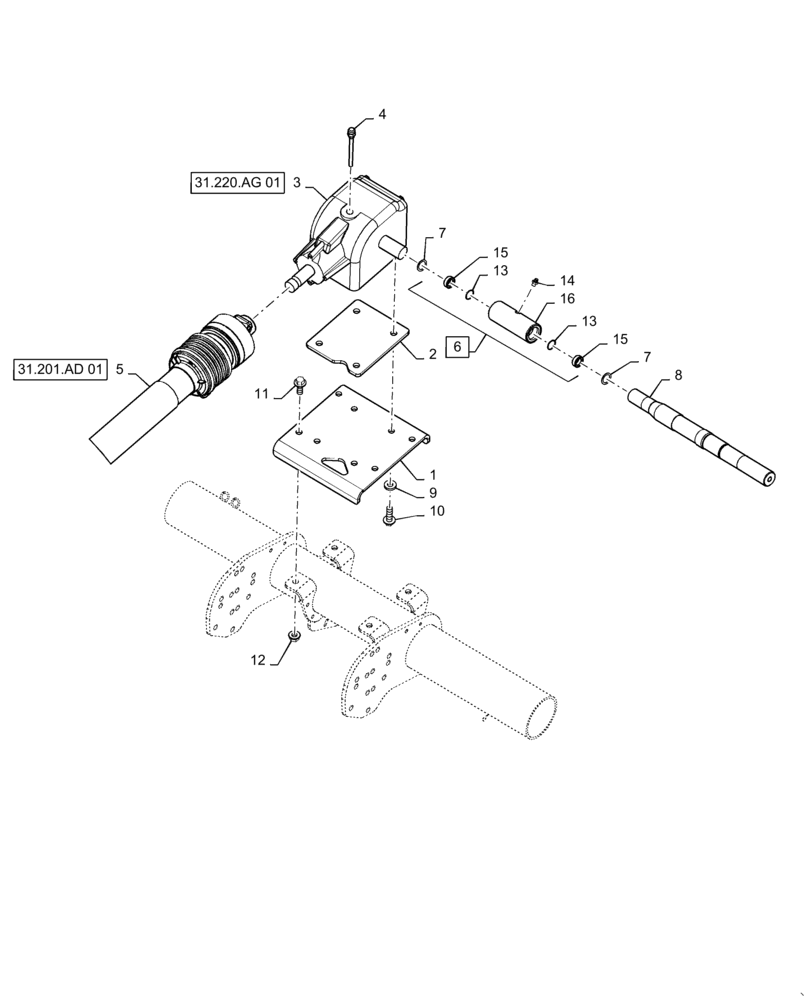

Запчасти Case IH RB455 (31.220.AL[01]) - VAR - 726871 - GEARBOX AND DRIVE, STANDARD, 540 RPM, YFN188618 AND PRIOR (31) - IMPLEMENT POWER TAKE OFF

1

84526344

MOUNT

1шт.

2

84526345

MOUNTING PLATE

1шт.

3

87391830

GEARBOX

540 RPM, Standard Duty

1шт.

4

86626270

DIPSTICK,129mm L

1шт.

5

84358413

PTO

540 RPM CV Cutout Clutch, 1700 Nm

1шт.

6

87661924

SPLINED COUPLING

Incl 13 - 16

1шт.

7

86637396

WASHER,25.6mm ID x 35.3mm OD x 1mm Thk

2шт.

8

86629575

SHAFT

1шт.

9

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

4шт.

10

9804272

BOLT,Hex, M16 x 50mm, Cl 8.8, Full Thd

4шт.

11

9804271

BOLT,Hex, M16 x 40mm, Cl 8.8, Full Thd

4шт.

12

9804280

FLANGE NUT,Hex, M16, Cl 8

4шт.

13

300643

SNAP RING,M38, Int

2шт.

14

62161

LUBE NIPPLE,M8 x 1.25, Str

2шт.

15

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

2шт.

16

NSS

NOT SOLD SEPARAT

Coupler, Incl in 6

1шт.
