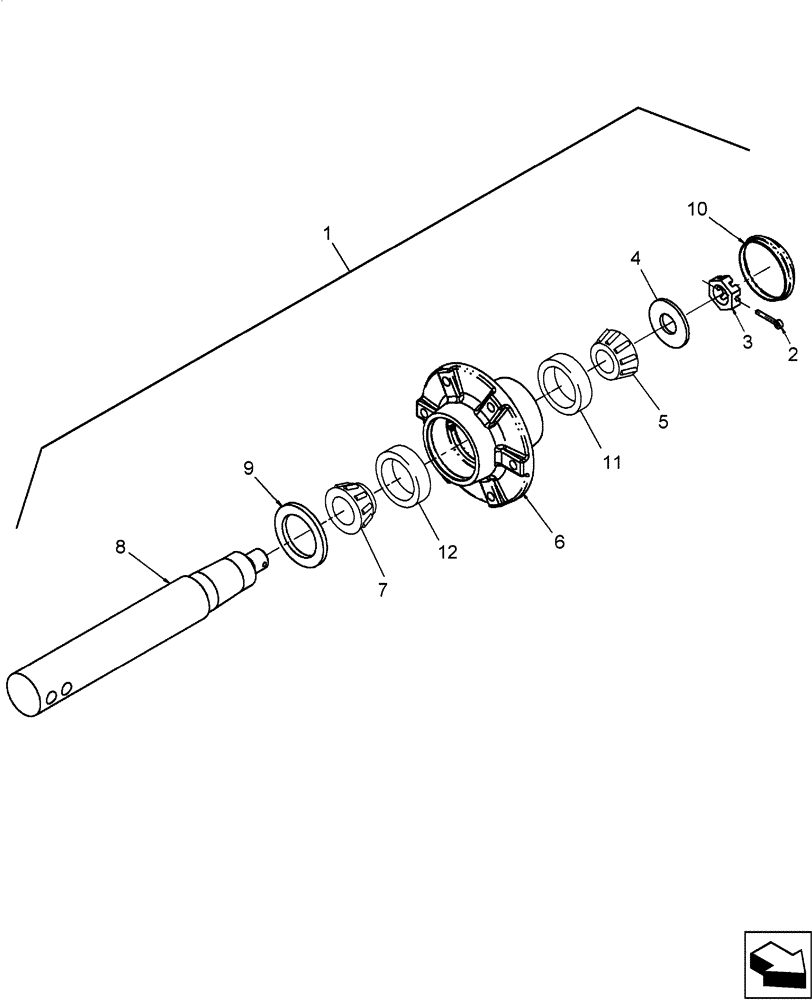

Запчасти Case IH RB455 (27.500.AO[01]) - VAR - 807260 - WHEEL HUB & SPINDLE (27) - REAR AXLE SYSTEM

1

84349225

HUB

Assembly

1шт.

2

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

3

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Slotted, G2, 1"-14

1шт.

4

87020635

WASHER

1"

1шт.

5

67527

ROLLER BEARING,45.26mm ID x 19.84mm W

1шт.

6

86979537

HUB

Wheel

1шт.

7

199954

BEARING CONE,50mm ID x 21.5mm W

1шт.

8

84349220

SPINDLE

Shaft

1шт.

9

245856

OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk

2.25" ID x 3.256" OD

1шт.

10

86900188

CAP

Hub

1шт.

11

67526

BEARING CUP,77.7mm OD x 15.08mm Thk

77.7 mm OD x 15.08 mm

1шт.

12

199955

BEARING CUP,82mm OD x 17mm W

1шт.
