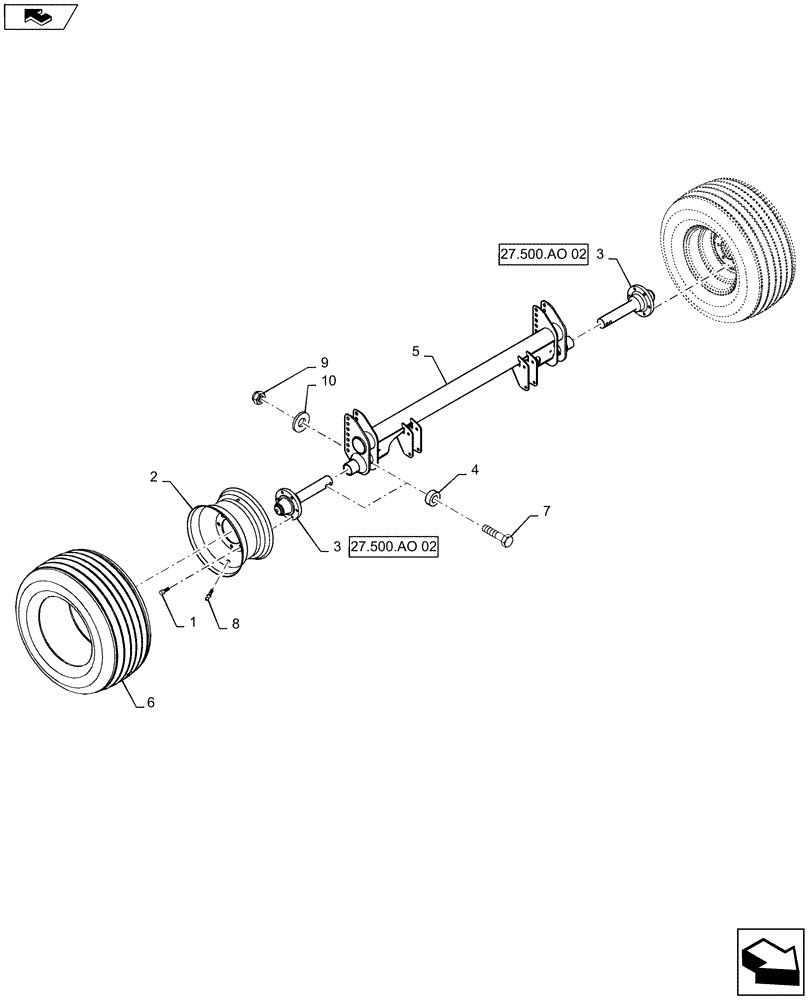

Запчасти Case IH RB455 (27.500.AL[02]) - VAR - 807490 - WHEELS & TIRES, 18L - 16.1 (27) - REAR AXLE SYSTEM

1

86625632

WHEEL NUT,Hex, M18 x 1.5

Wheel, M18 x 1.5 UNF

12шт.

2

87715422

WHEEL

16.1 x 14-6

2шт.

3

86631642

HUB

Spindle, Heavy Duty

2шт.

4

86641937

SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk

2шт.

5

47569777

AXLE

with Under Shot Rotor Pickup

1шт.

5

84535647

AXLE

with Over Shot Feeder Pickup

1шт.

6

87715417

TYRE/TIRE

18L - 16.1SL, 10 Ply

2шт.

7

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

8

86616183

TIRE TUBE

2шт.

9

86000441

NUT,M16 x 2.0, Cl 8

2шт.

10

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

Hardened, 5/8

2шт.
