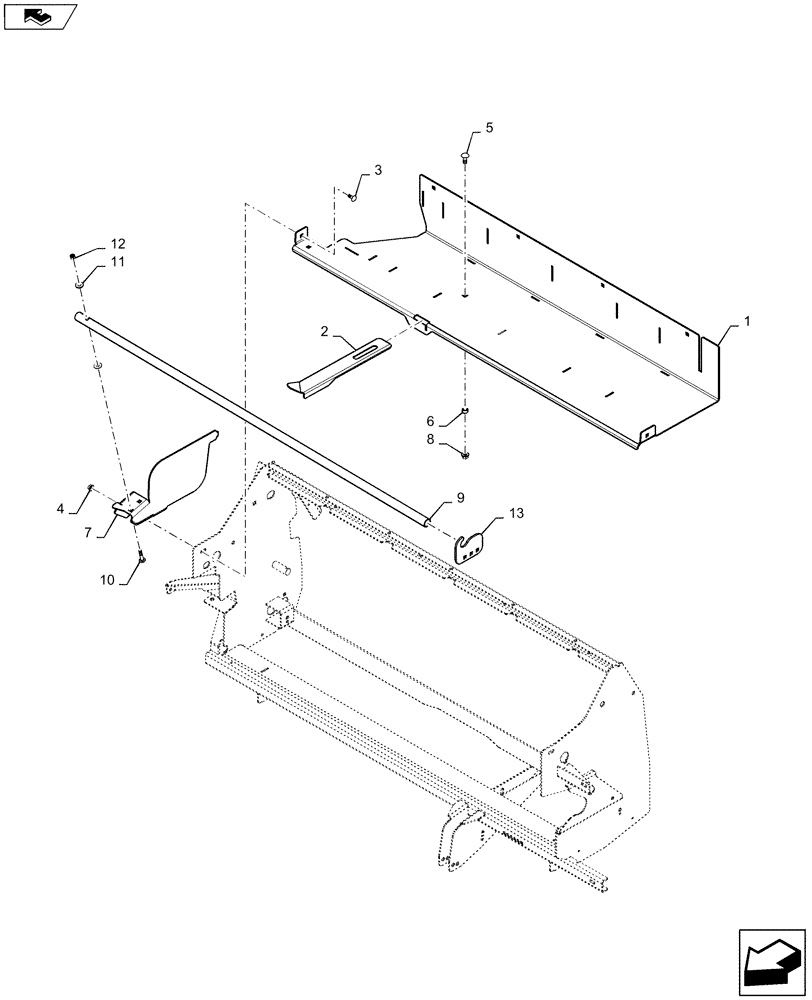

Запчасти Case IH RB455 (90.105.BR[05]) - VAR - 726666 - FRONT NET BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47496488

WRAPPER

1шт.

2

47463692

SUPPORT

Net Loading

1шт.

3

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

5

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

6

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

1шт.

7

47457566

DIVIDER

1шт.

8

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

9

47465275

SHAFT

1шт.

10

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

1шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

3шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

13

47465273

LATCH

1шт.
