Запчасти Case IH RB455 (90.105.BR[02]) - VAR - 726964 - TWINE BOX, NET AND TWINE, YFN188618 AND PRIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

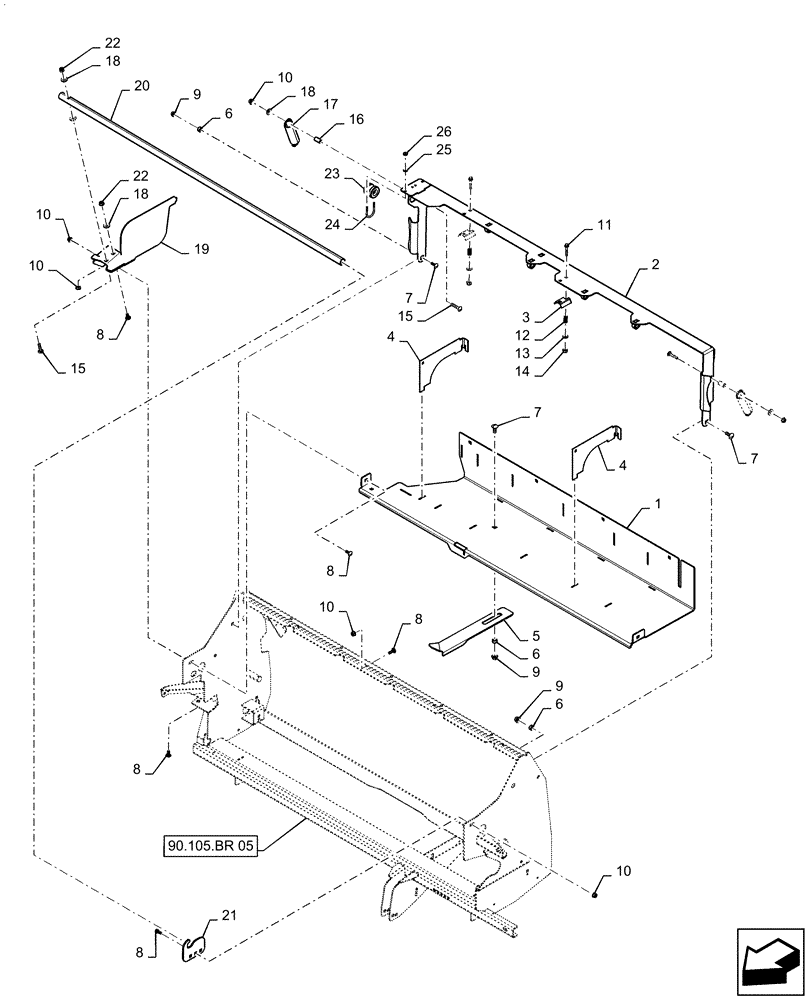

Схема запчастей Case IH RB455 - (90.105.BR[02]) - VAR - 726964 - TWINE BOX, NET AND TWINE, YFN188618 AND PRIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
26
6
5
17
9
1
15
7
12
10
24
14
16
9
10
7
90.105.br 05
8
8
2
22
9
11
18
4
22
10
15
21
8
23
7
8
3
6
10
13
8
20
18
10
18
19
25
4
6

Артикул

Название

Примечание

Количество

1

47496488

WRAPPER

1шт.

2

84580511

TENSIONER

1шт.

3

9820171

BRACKET

2шт.

4

84572188

DIVIDER

4шт.

5

47463692

SUPPORT

1шт.

6

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

3шт.

7

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

3шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8шт.

9

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

10шт.

11

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

4шт.

12

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

4шт.

13

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

14

353308

NUT,M6 x 1.0, Cl 8

4шт.

15

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

3шт.

16

27695

BUSHING,9.53mm ID x 12.83mm OD x 25.4mm L

2шт.

17

32379

SPRING,Extension, 1-1/4" OD x 5-3/8" L

2шт.

18

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

19

47457566

DIVIDER

1шт.

20

47465275

SHAFT

1шт.

21

47457573

LATCH

1шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

23

84298727

GUIDE

Porcelain

2шт.

24

28114

U-BOLT

2шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

26

87304

NUT,#10-24

4шт.

Выбрано товаров: 26
