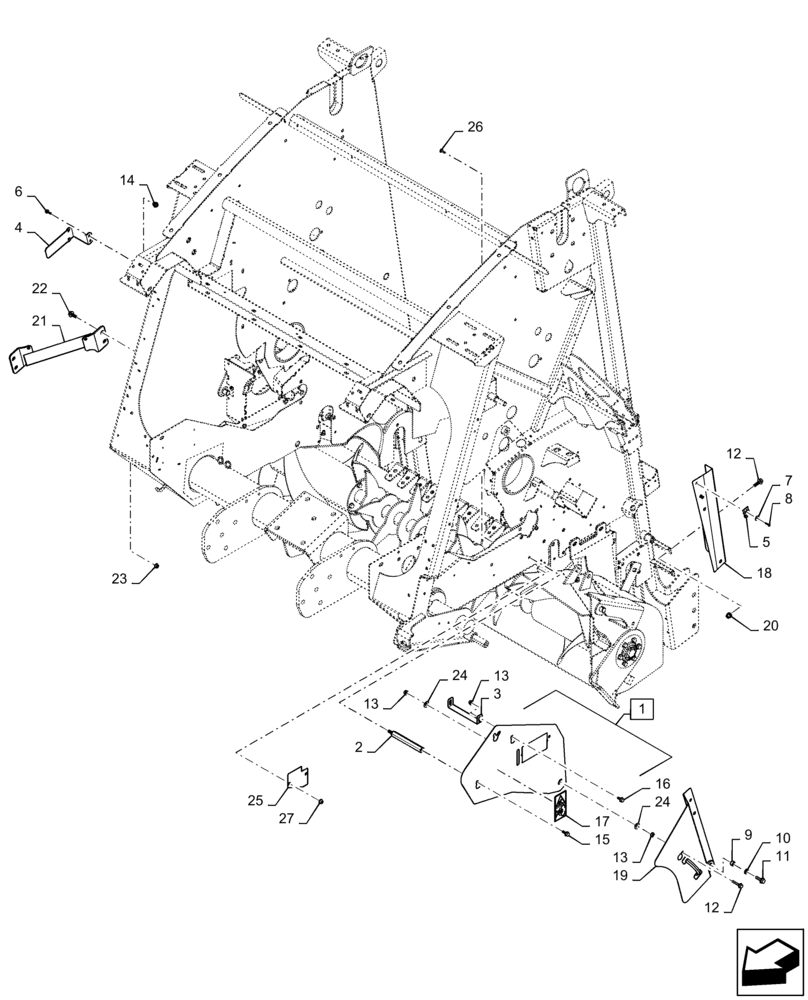

Запчасти Case IH RB455 (90.105.AS[05]) - VAR - 722000 - PICK-UP SHIELD, OVERSHOT FEEDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47607487

SHIELD

Incl 17

1шт.

2

47394340

SHAFT

LH

1шт.

3

47394554

BRACKET

1шт.

4

47449166

BRACKET

1шт.

5

47325

CLIP

1шт.

6

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

7

280254

LOCK WASHER,5.18mm ID x 9.68mm OD x 0.64mm Thk

1шт.

8

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

1шт.

9

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

1шт.

10

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

11

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

12

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

5шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

14

86610198

INSERT,M6 x 1

2шт.

15

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

17

84004734

WARNING DECAL

1шт.

18

47448359

SHIELD

1шт.

19

47495318

SHIELD

1шт.

20

86610200

THREADED INSERT,M8 x 1.25

4шт.

21

47448247

REINFORCEMENT

1шт.

22

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

23

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

24

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

2шт.

25

47427240

COVER

2шт.

26

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

27

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.
