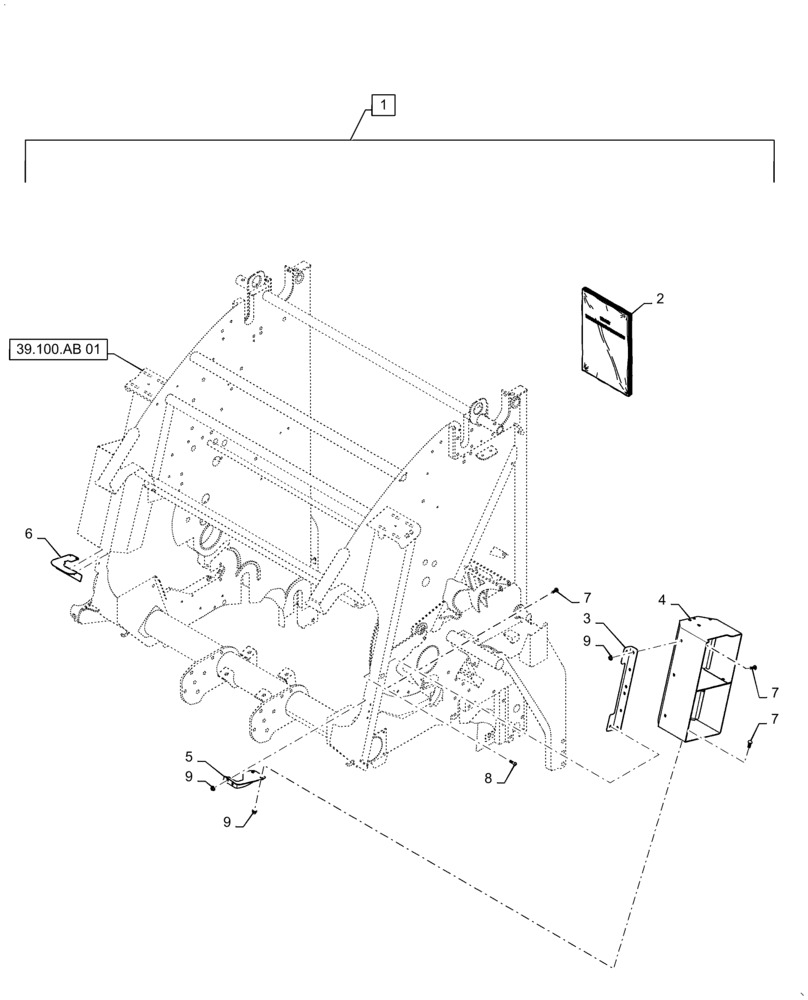

Запчасти Case IH RB455 (88.100.90[02]) - DIA KIT, AUXILIARY TWINE BOX (88) - ACCESSORIES

1

84580272

DIA KIT, HARVESTER

Auxiliary Twine Box, Incl 2 - 9

1шт.

2

84555220

INSTRUCTION

1шт.

3

84581165

BRACKET

2шт.

4

84579325

TWINE BOX

2шт.

5

84594124

BRACKET

LH

1шт.

6

84594122

BRACKET

RH

1шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

14шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

14шт.
