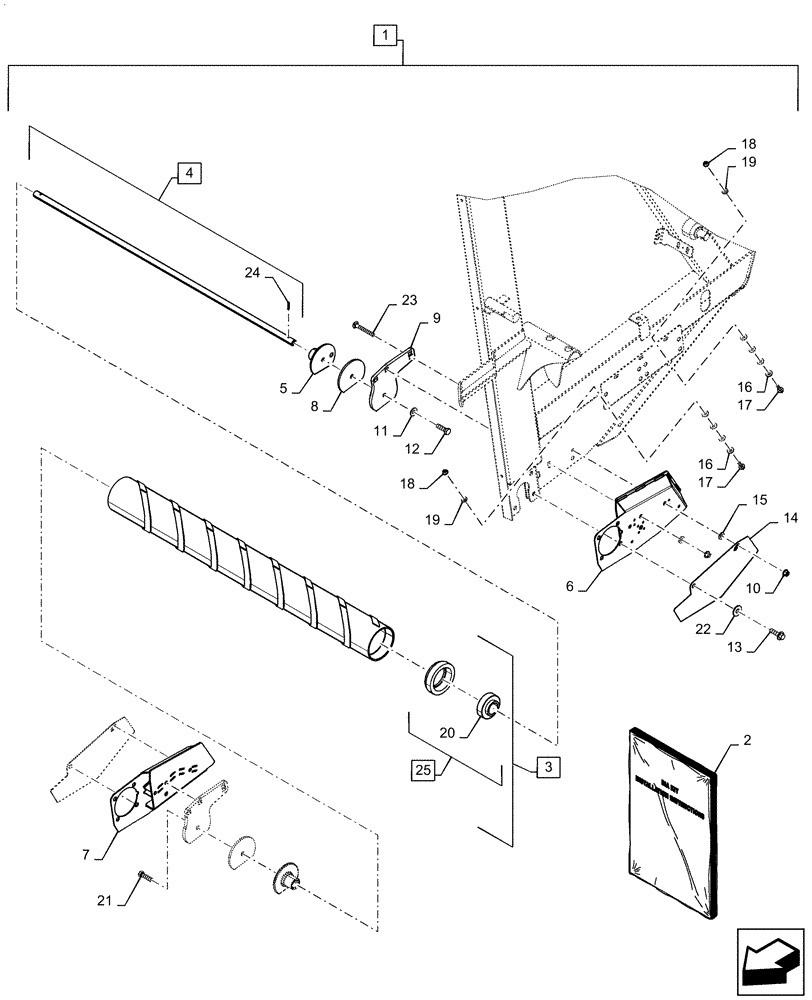

Запчасти Case IH RB455 (88.100.62[11]) - DIA KIT, TAILGATE CHOPPING ROLL (88) - ACCESSORIES

1

47842226

DIA KIT, HARVESTER

Tailgate Chopping Roll, Incl 2 - 23

1шт.

2

47933765

INSTRUCTION

1шт.

3

47512226

ROLL

Tailgate Chopping, Incl 25

1шт.

4

9823372

SHAFT,1135mm L

Incl 24

1шт.

5

87654792

SUPPORT

2шт.

6

47864170

BRACKET

LH

1шт.

7

47866433

BRACKET

RH

1шт.

8

47876890

PLATE

2шт.

9

47876893

PLATE

2шт.

Used on Undershot Rotor Balers

1шт.

9

47876894

PLATE

2шт.

Used on Overshot Feeder Balers

1шт.

10

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

Used on Overshot Feeder Balers

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

12

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

Used on Undershot Rotor Balers

1шт.

13

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

8шт.

14

47876969

SHIELD

2шт.

Used on Undershot Rotor Balers

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

Used on Overshot Feeder Balers

1шт.

16

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

17

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

Used on Overshot Feeder Balers

1шт.

20

9845576

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

21

412605

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

Used on Overshot Feeder Balers

1шт.

22

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

23

412189

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 80mm, Cl 8.8

6шт.

24

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

25

47504953

BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk

Incl 20

2шт.
